PART NO. | PRODUCT NAME | MSRP(USD) | |
---|---|---|---|

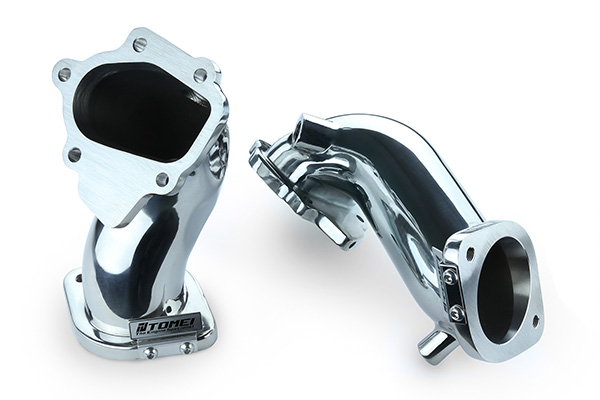

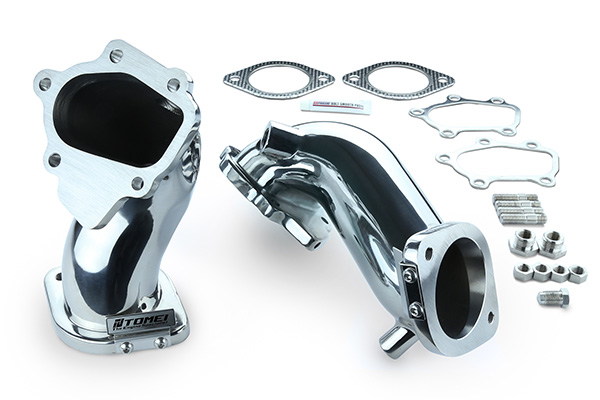

TB6020-NS05A (Same as Previous) | TURBINE OUTLET PIPE KIT EXPREME GT-R RB26DETT INVENTORY→ | $590.00 |
MAKER | ENGINE | MODEL |
---|---|---|

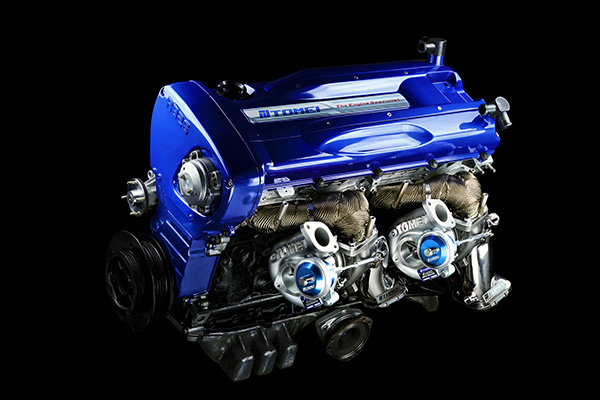

NISSAN | RB26DETT | 32 GT-R / 33 GT-R / 34 GT-R |
Large capacity unleashing potential
of the turbo

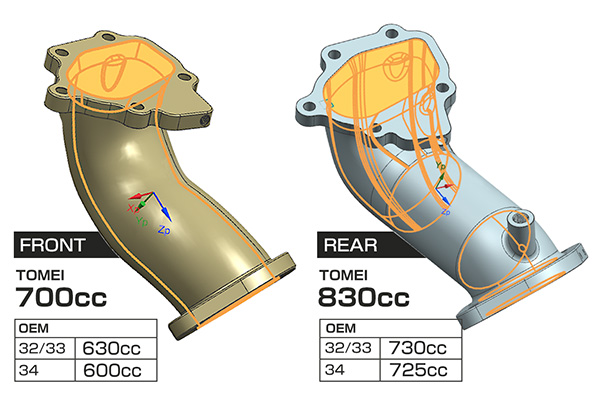

Large capacity suppresses secondary exhaust pressure.

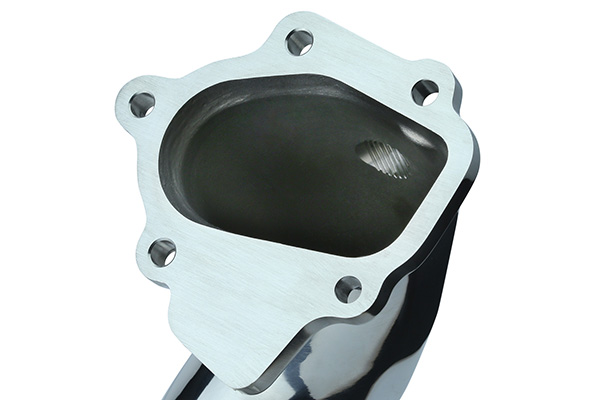

Wide mouth catches the exhaust from the turbo and allows it to flow smoothly.

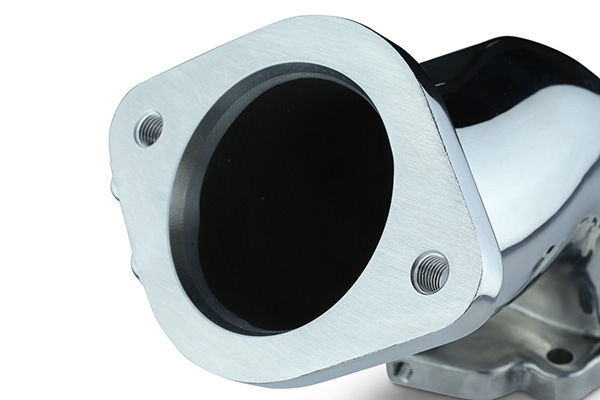

Large diameter Φ70.0 exit connects to the front pipe without any step.

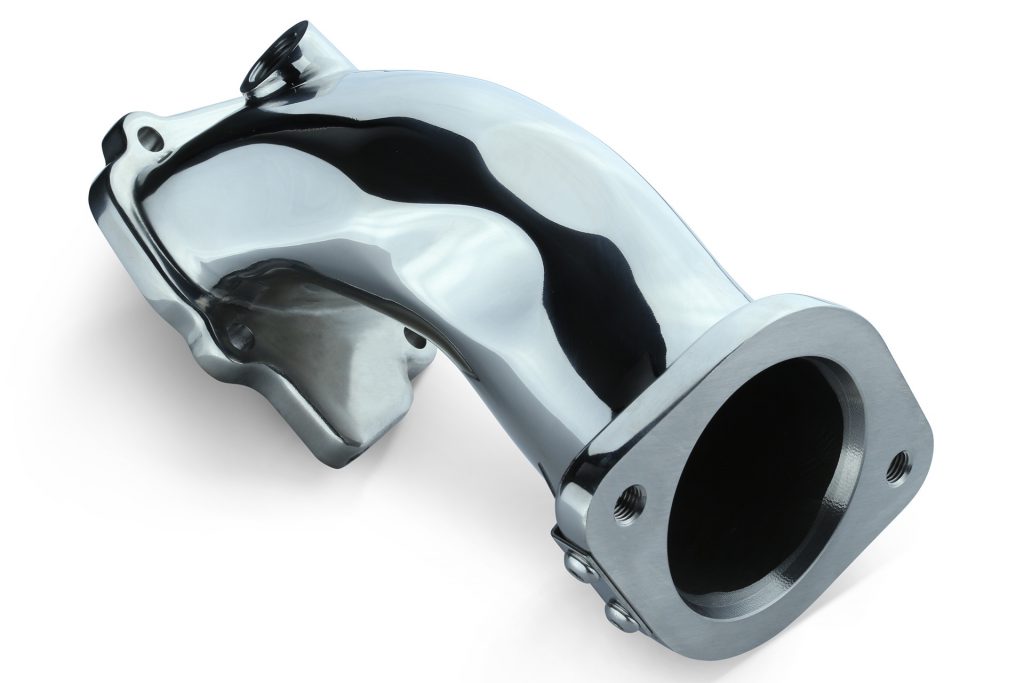

Completely molded in one piece without any welds,
preventing problems with lost wax manufacturing method.

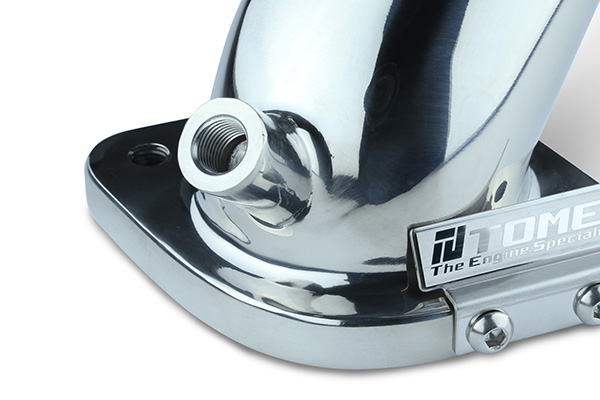

O₂ sensor bung included for BNR32.

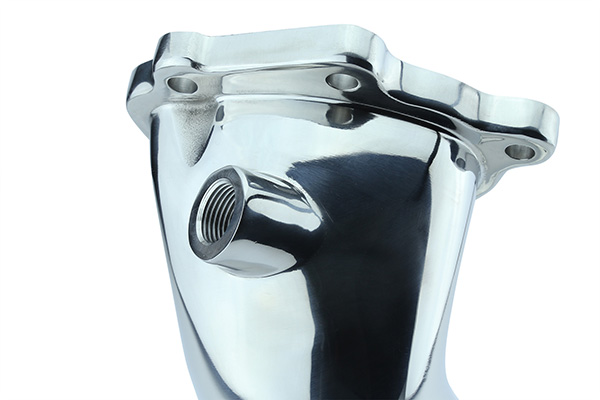

Exhaust temperature sensor blind plug is also included for BNR32/BCNR33.

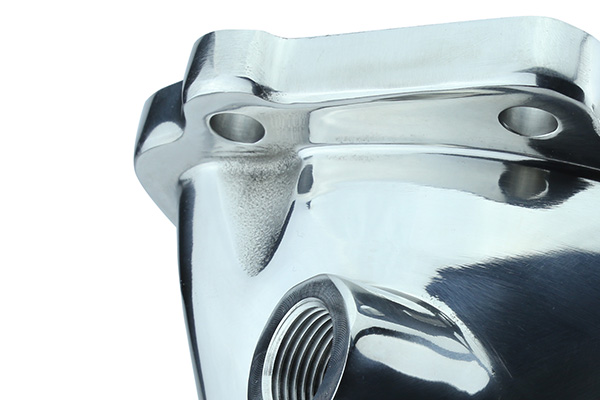

Recesses are provided in areas where it is difficult
for tools to enter to ensure precise tightening.
Appearance is taken seriously in pursuing “beauty”
Ready to Use Immediately After Opening
SPECIFICATION |
TOMEI | OEM | |||||
---|---|---|---|---|---|---|
BNR32/BCNR33/BNR34 | BNR32/BCNR33 | BNR34 | ||||
FRONT | REAR | FRONT | REAR | FRONT | REAR | |
MATERIAL | SUS304 | - | - | |||
EXIT DIAMETER | Φ70.0mm | Φ58.0mm | Φ55.0mm | |||
VOLUME | 700cc | 830cc | 630cc | 730cc | 600cc | 725cc |
PIPE THICKNESS | approx. 3.0mm | approx. 4.5mm | approx. 2.0mm | |||
FLANGE THICKNESS | approx. 12.0mm | approx. 11-14mm | approx. 11.5mm | |||
WEIGHT | 2.0kg (4.5lbs) | 1.85kg (4.1lbs) | 2.3kg (5.1lbs) | 2.7kg (6.0lbs) | 1.75kg (3.9lbs) | 1.9kg (4.2lbs) |
RELATED PARTS |
PRODUCT | MATERIAL | PART NO. | |||
---|---|---|---|---|---|
TURBO | MX series (Journal Bearing) | MX7655 | TB401A-NS05A INVENTORY→ | ||
MX8260 | TB401A-NS05B INVENTORY→ | ||||
BX series (Ball Bearing) | BX7655 | TB403A-NS05A INVENTORY→ | |||
BX8260 | TB403A-NS05B INVENTORY→ | ||||
EX-MANI | SUS | TB6010-NS05A INVENTORY→ | |||
FRONT PIPE | SUS | TB6080-NS05A INVENTORY→ | |||
MUFFLER | TITANIUM | BNR32 | TB6090-NS05A INVENTORY→ | ||
TITANIUM | BCNR33 | TB6090-NS05B INVENTORY→ | |||
TITANIUM | BNR34 | TB6090-NS05C INVENTORY→ | |||
STRAIGHT PIPE | TITANIUM | TB6100-NS00A INVENTORY→ |
