SR20DET/2JZ-GTE Std-Stroke Forged Piston Kit

2023-12-272024-01-10

PART NO.	PRODUCT NAME	IMAGE
TA202A-NS08B	FORGED PISTON KIT SR20DET 87.00MM CH32.00 (STD) More details¨
TA202A-TY03C	FORGED PISTON KIT 2JZ-GTE 87.00MM CH34.00 (STD) More details¨

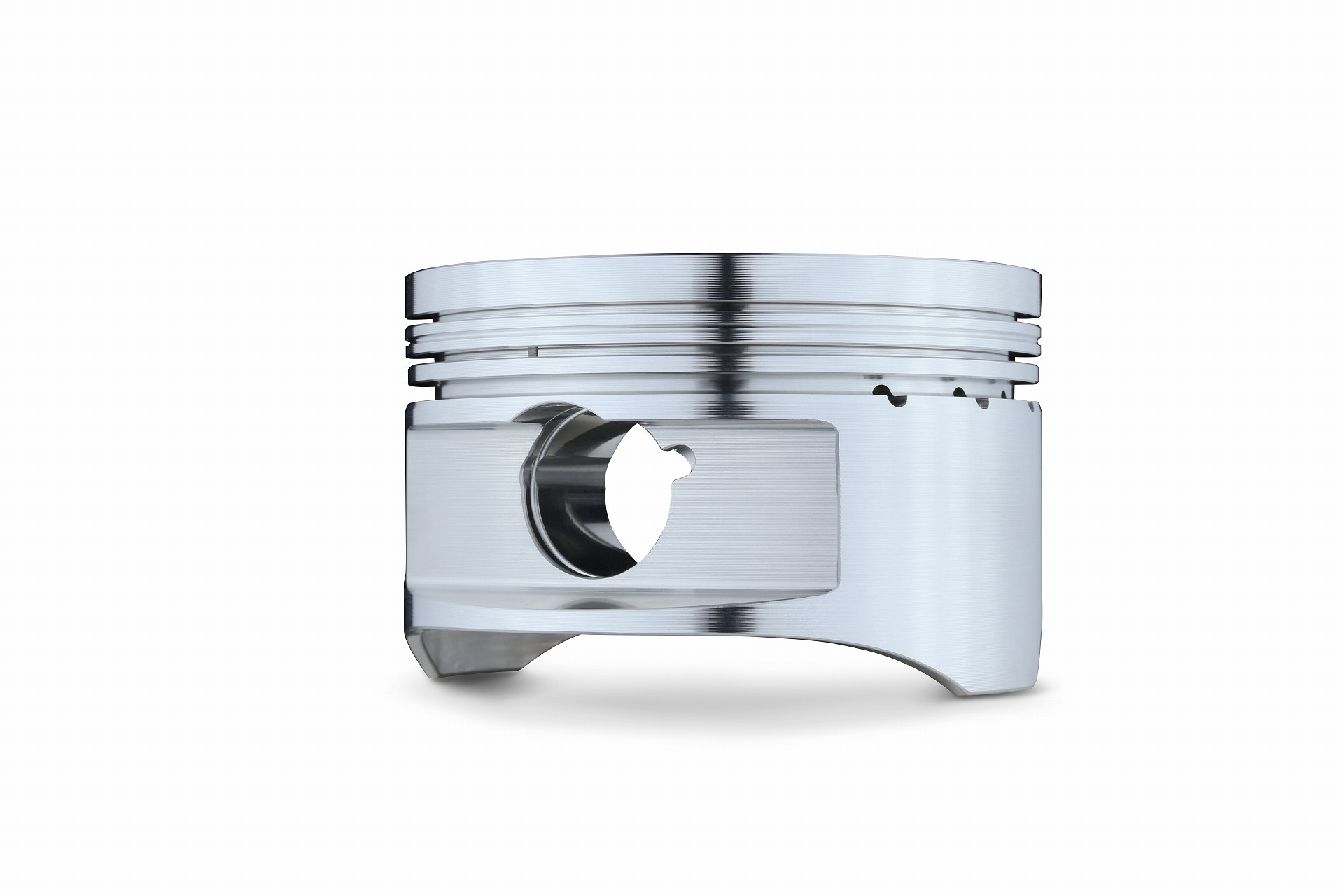

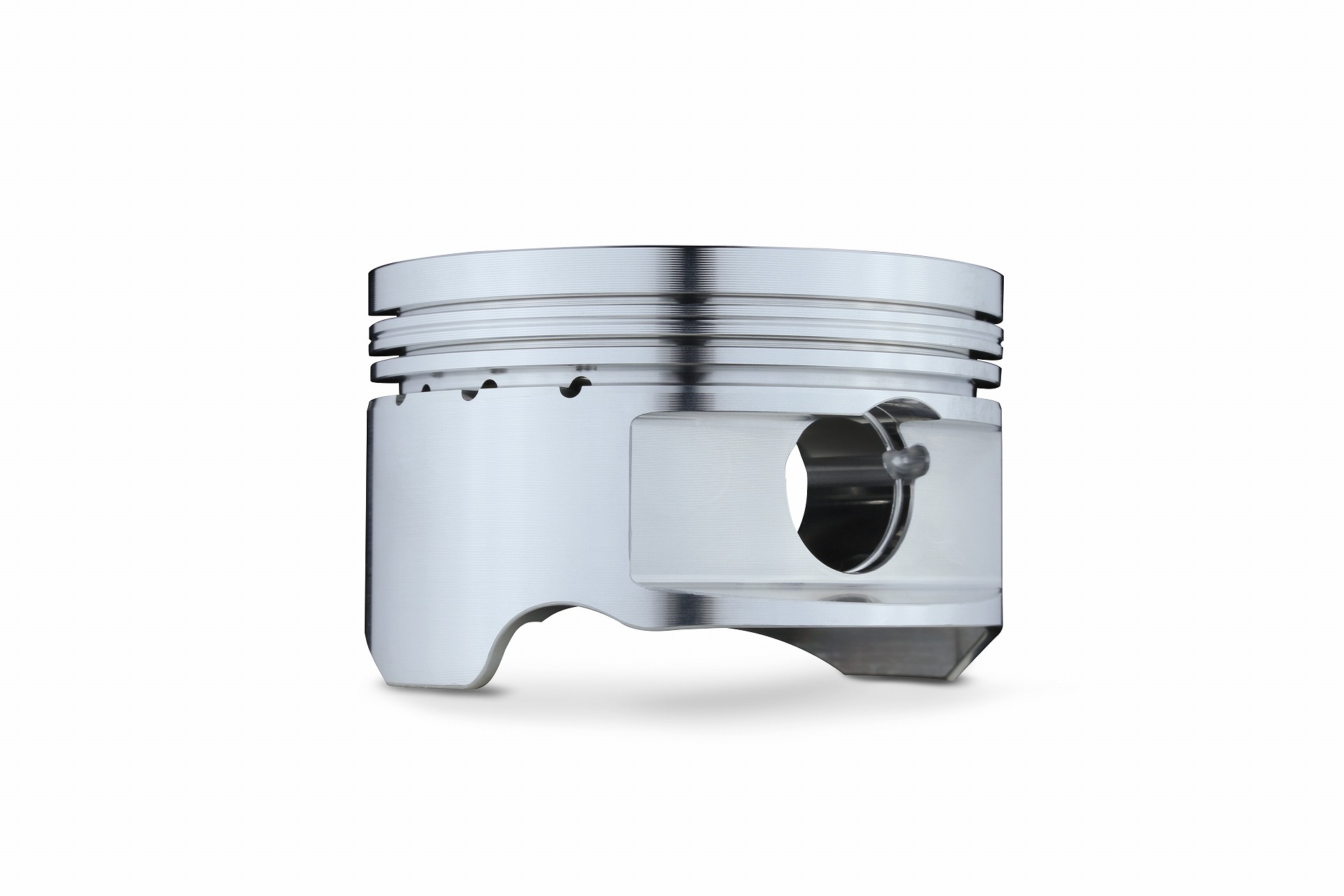

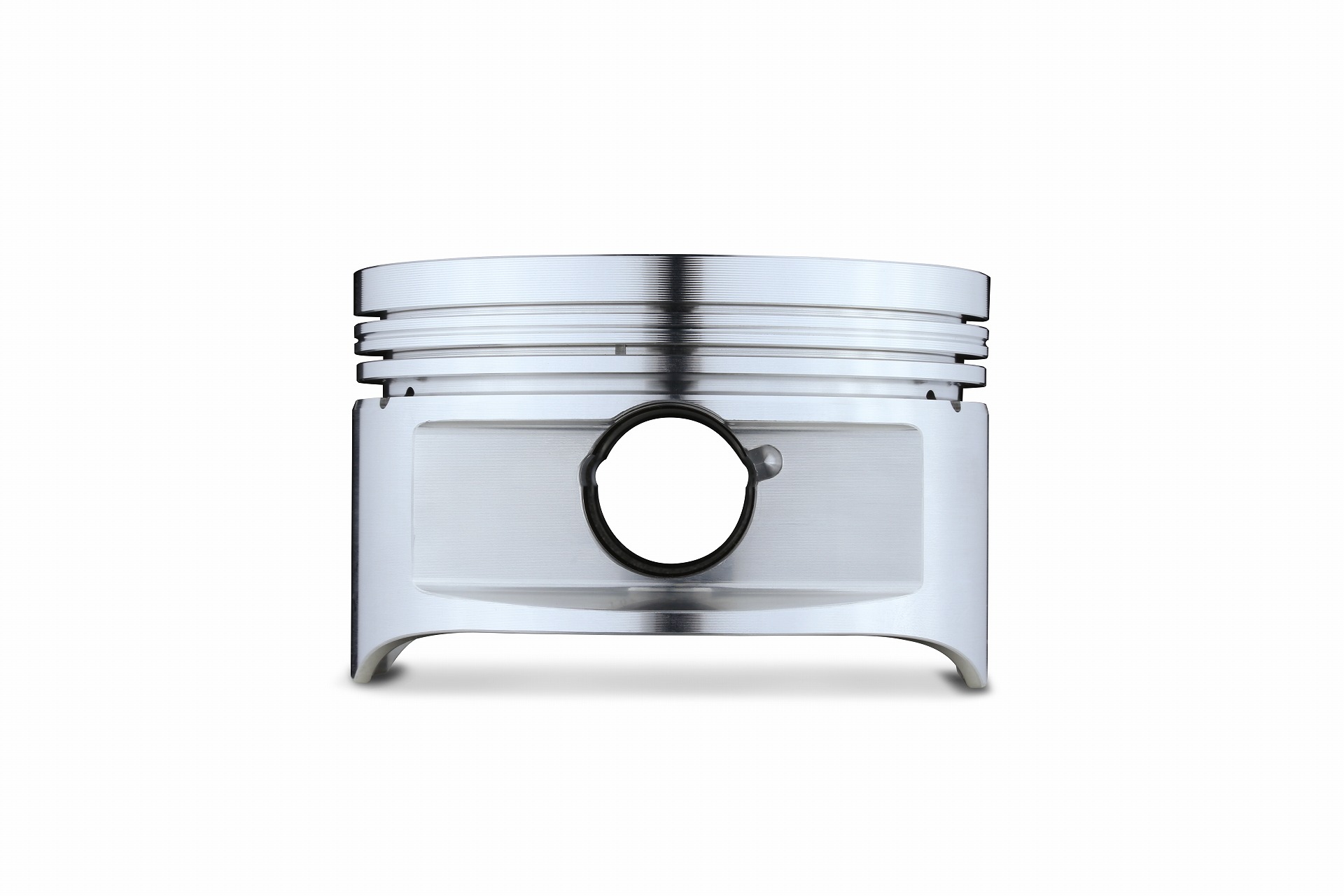

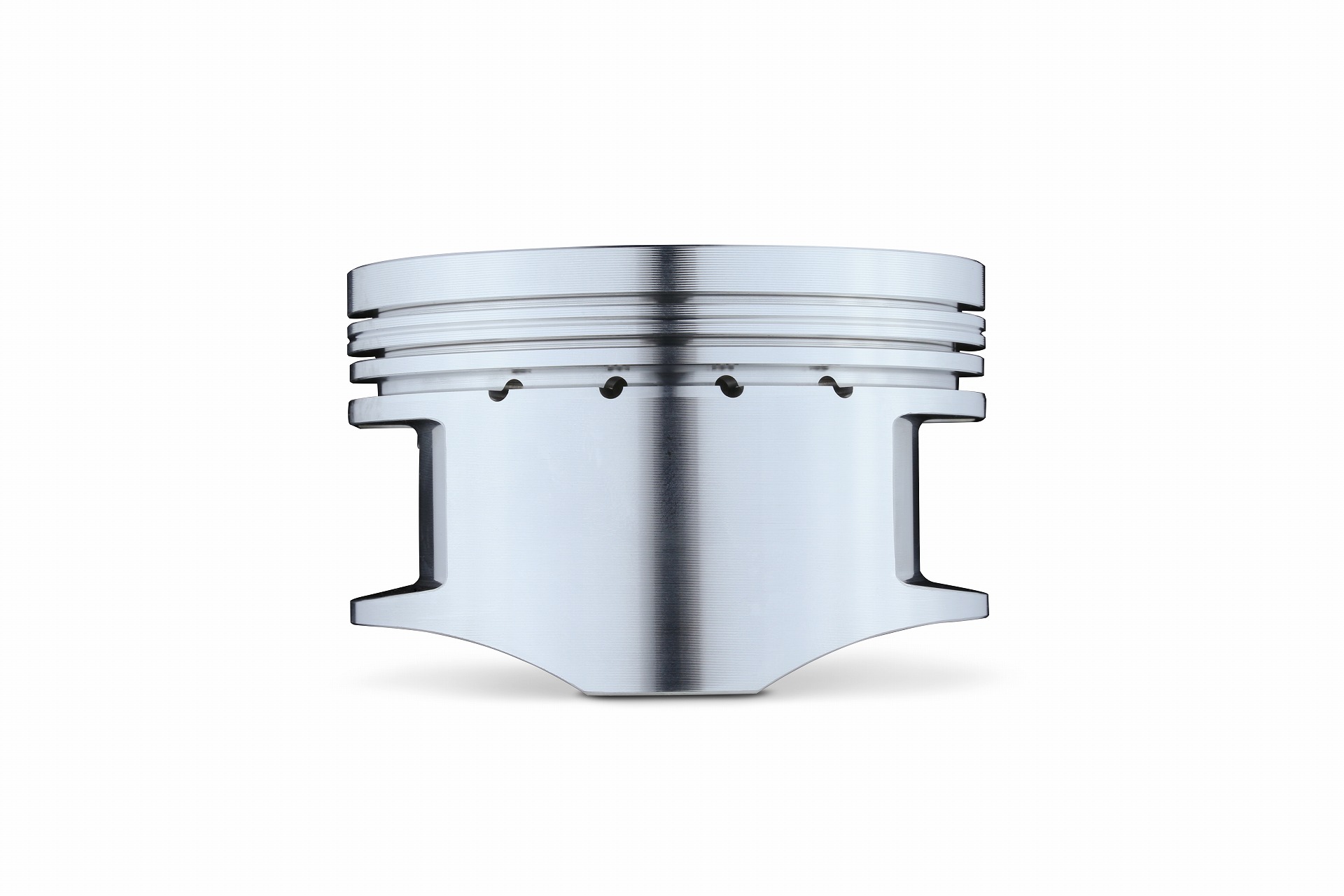

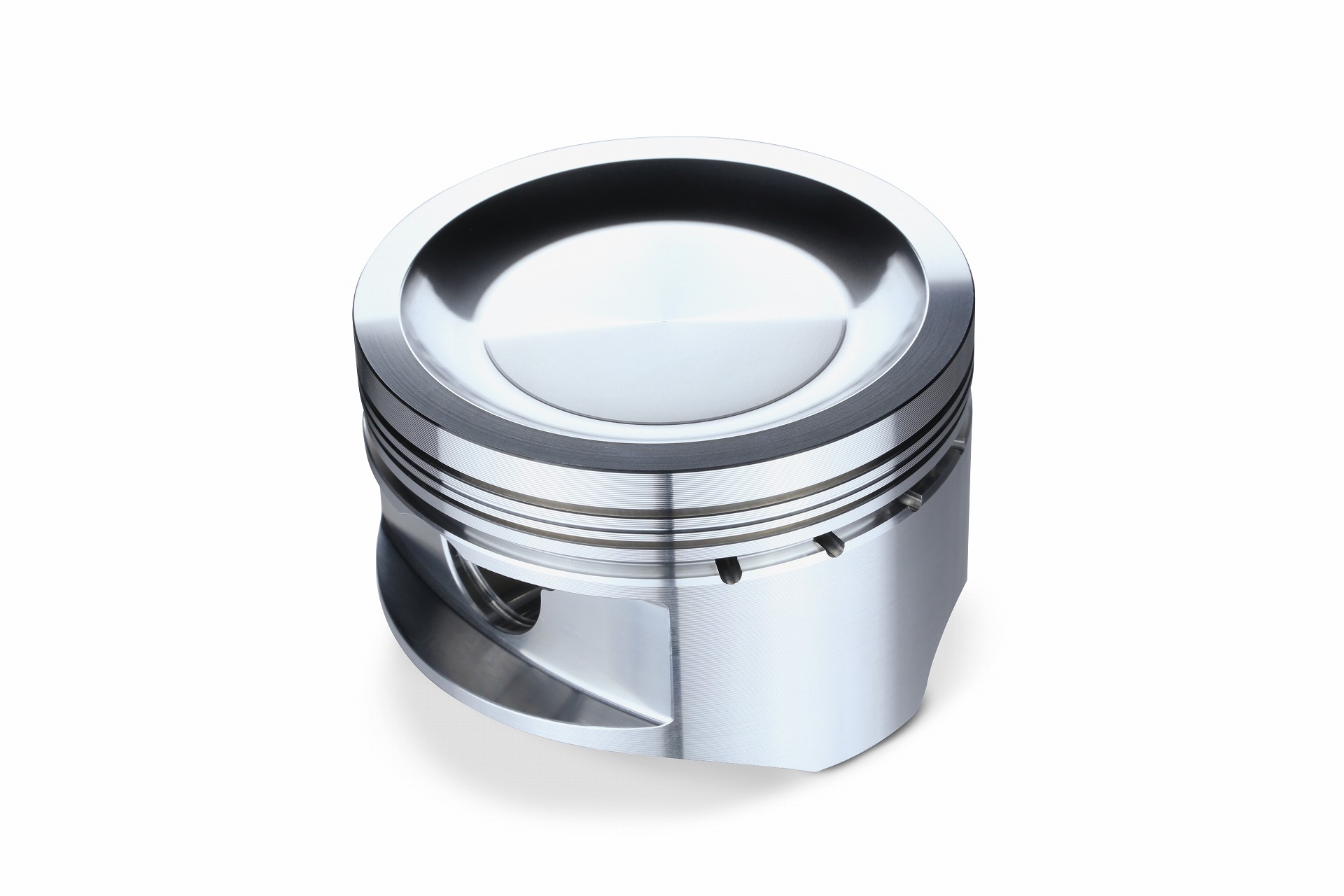

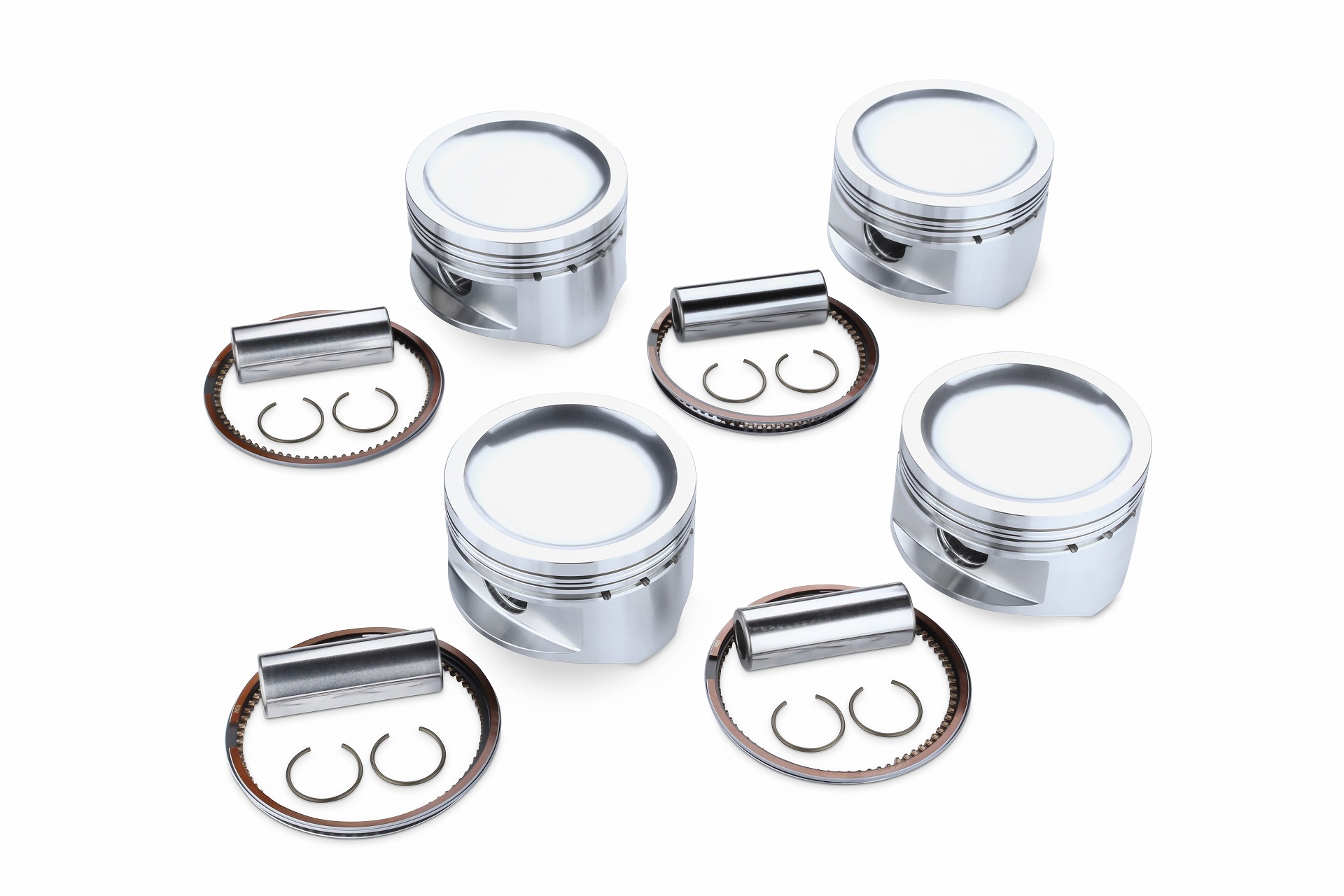

SR20DET

SPECIFICATIONS

	TOMEI	STD
STROKE	86.0mm	86.0mm
METHOD	FORGED	CASTING
MATERIAL	A4032	N/A
BORE	87.0mm	86.0mm/86.2mm
DISPLACEMENT	2,045cc	1,998cc
PIN DIAMETER	22.0mm	22.0mm
PIN LENGTH	60.0mm	70.0mm
CIRCLIP I/D	22.0mm	22.0mm
VALVE RECESS	WITHOUT	WITHOUT
COMP. HEIGHT	32.0mm	32.0mm
PISTON VOLUME	-14.2cc	-11.5cc
PISTON WEIGHT	370.5g	341.5g
PIN WEIGHT	121.5g	135.7g
TOTAL WEIGHT	492.0g	477.2g
TOP RING	1.20 x 3.05mm	1.50 x 3.10mm
SECOND RING	1.20 x 3.90mm	1.50 x 3.70mm
OIL RING	2.50 x 2.95mm	3.00 x 3.10mm
PISTON CLEARANCE	0.045-0.055mm	0.010-0.030mm

COMPRESSION RATIO Ref.

HEAD GASKET	COMPRESSION RATIO（STD：8.5）
88.0-1.2mm	8.30
88.0-1.5mm	8.12
88.0-1.8mm	7.94

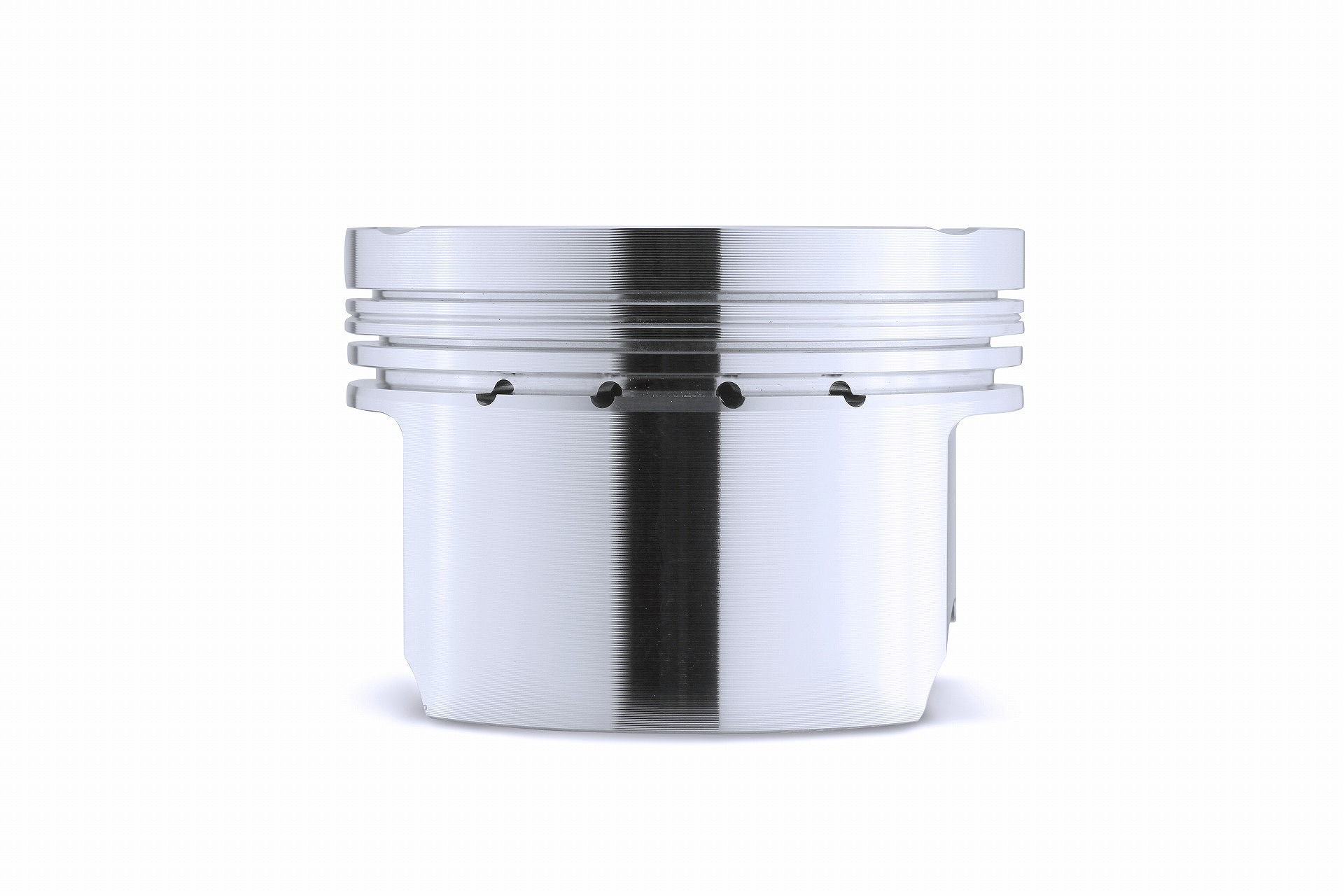

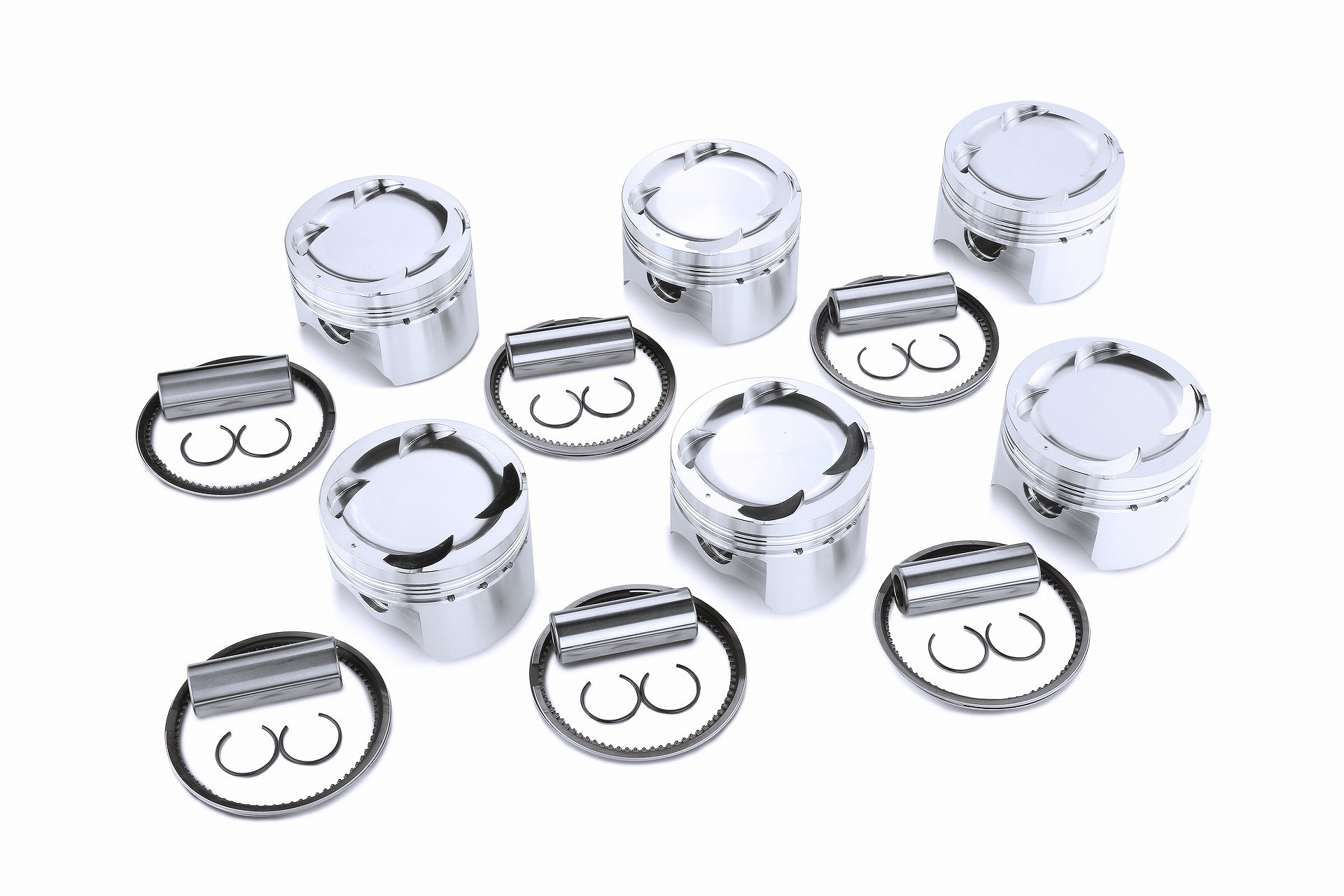

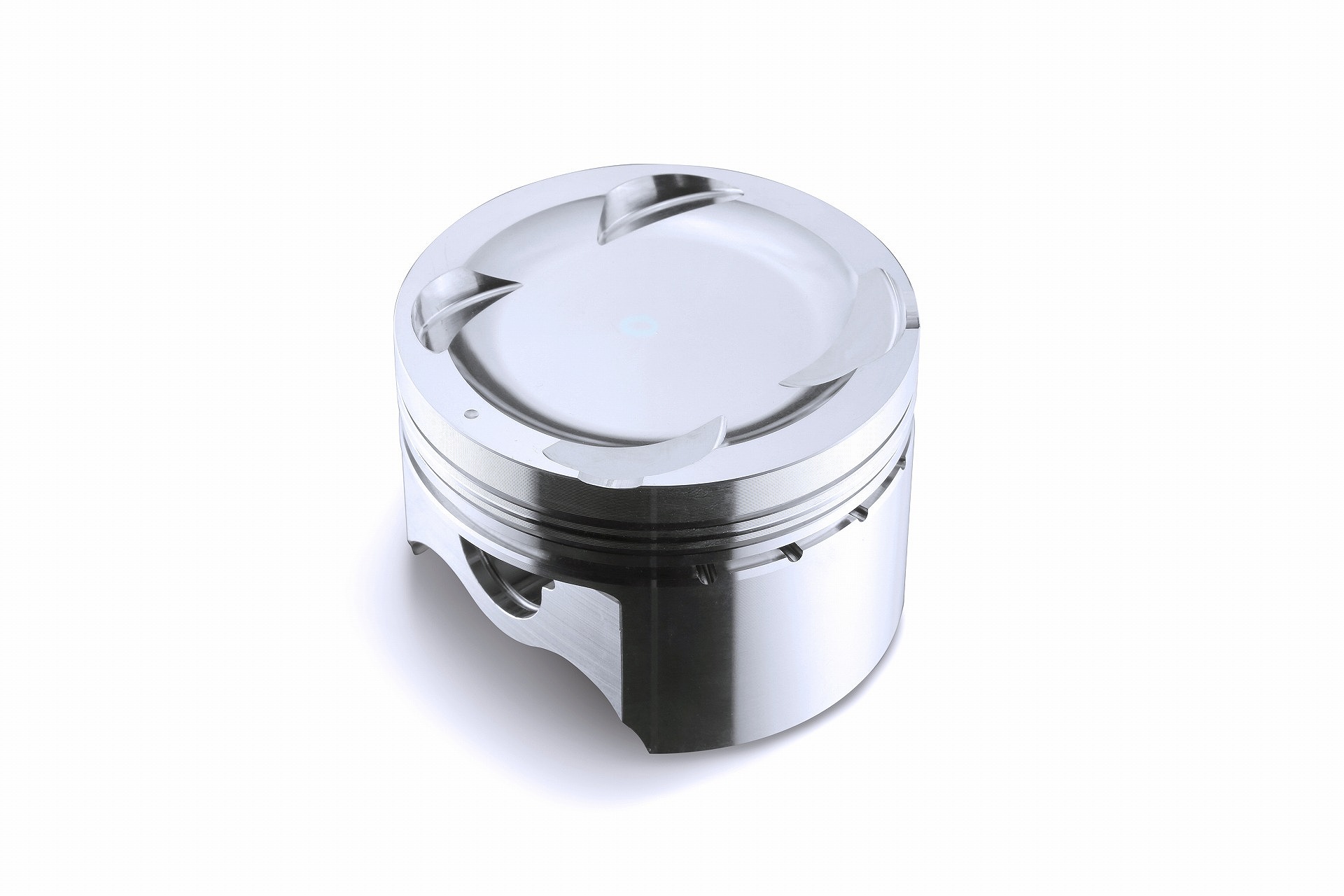

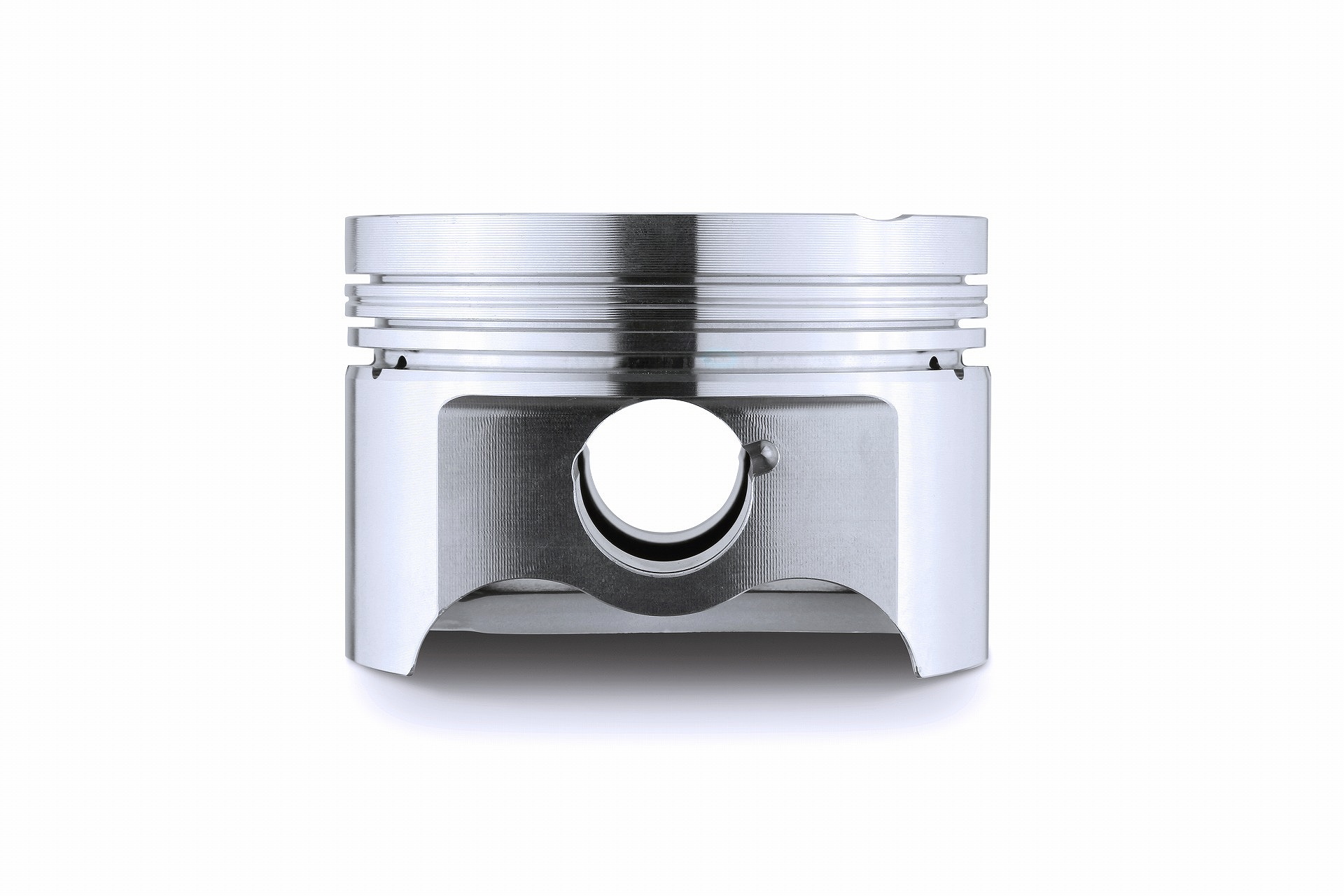

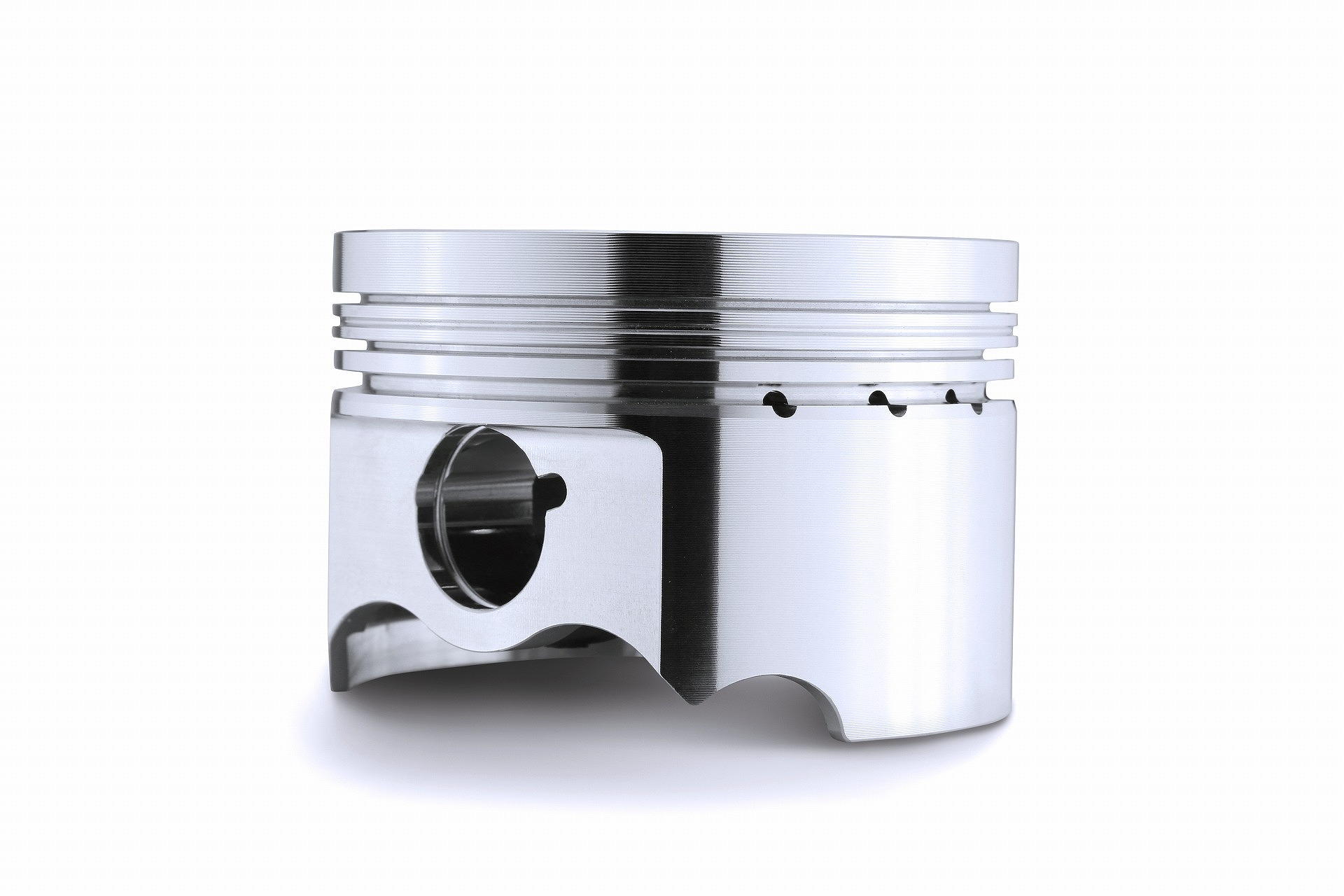

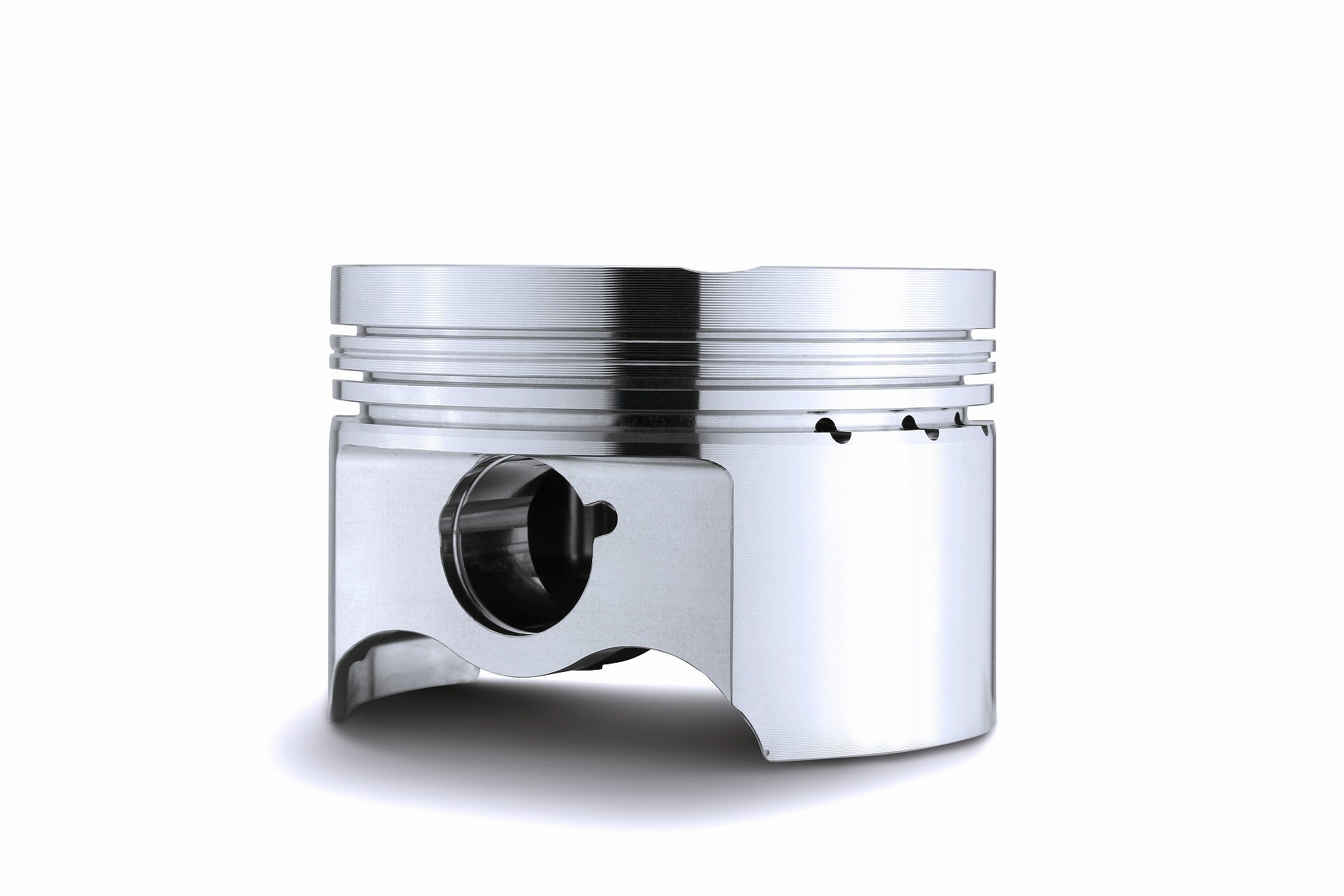

2JZ-GTE

SPECIFICATIONS

	TOMEI	STD
STROKE	87.0mm	86.0mm
METHOD	FORGED	CASTING
MATERIAL	A4032	N/A
BORE	87.0mm	86.0mm
DISPLACEMENT	3,068cc	2,997cc
PIN DIAMETER	22.0mm	22.0mm
PIN LENGTH	60.0mm	66.0mm
CIRCLIP I/D	22.0mm	22.0mm
VALVE RECESS	WITH	WITH
COMP. HEIGHT	34.0mm	34.0mm
PISTON VOLUME	-14.6cc	-13.8cc
PISTON WEIGHT	369.3g	376.8g
PIN WEIGHT	121.5g	123.4g
TOTAL WEIGHT	490.8g	500.2g
TOP RING	1.20 x 3.05mm	1.50 x 3.30mm
SECOND RING	1.20 x 3.90mm	1.50 x 3.80mm
OIL RING	2.50 x 2.95mm	4.00 x 2.85mm
PISTON CLEARANCE	0.050-0.055mm	0.073-0.096mm

COMPRESSION RATIO Ref.

HEAD GASKET	COMPRESSION RATIO（STD：8.5）
87.5-1.2mm	8.65
87.5-1.5mm	8.45
87.5-1.8mm	8.26
87.5-2.0mm	8.14

BLOCK RELATED PRODUCTS

MAKE	ENGINE	CATEGORY	NOTE 1	NOTE 2	PART NO.
NISSAN INFINITI	VR38DETT	STROKER KIT	4.1L	TOMEI	TA201A-NS01A
		STROKER KIT	4.1L	CP	TA201A-NS01AP
		PISTON	for 4.1L	TOMEI	TA202A-NS01A
		PISTON	for 4.1L	CP	TA202A-NS01AP
		CON-ROD	for 4.1L		TA203A-NS01A
		CRANKSHAFT	for 4.1L		TA204D-NS01A
	VQ35HR	CON-ROD	for 3.5L(STD)		TA203A-NS03A
	VQ35DE	CON-ROD	for 3.5L(STD)		TA203A-NS04A
	RB26DETT	STROKER KIT	2.8L Semi-C.W.	TOMEI	TA201A-NS05A
			2.8L Semi-C.W.	CP	TA201A-NS05AP
			2.8L Full-C.W.	TOMEI	TA201A-NS05B
			2.8L Full-C.W.	CP	TA201A-NS05BP
			2.6L(STD) Full-C.W.	TOMEI	TA201A-NS05C
			2.6L(STD) Full-C.W.	CP	TA201A-NS05CP
		PISTON	for 2.6L(STD)/2.8L	TOMEI	TA202A-NS05A
		PISTON	for 2.6L(STD)/2.8L	CP	TA202A-NS05AP
		CON-ROD	for 2.6L(STD)		TA203A-NS05A
		CON-ROD	for 2.8L		TA203A-NS05B
		CRANKSHAFT	for 2.6L(STD)	Full-C.W.	TA204B-NS05A
			for 2.8L	Full-C.W.	TA204B-NS05B
			for 2.8L	Semi-C.W.	TA204C-NS05A
	RB25DET	STROKER KIT	2.8L Semi-C.W.	TOMEI	TA201A-NS05A
			2.8L Semi-C.W.	CP	TA201A-NS05AP
			2.8L Full-C.W.	TOMEI	TA201A-NS05B
			2.8L Full-C.W.	CP	TA201A-NS05BP
			2.6L Full-C.W.	TOMEI	TA201A-NS05C
			2.6L Full-C.W.	CP	TA201A-NS05CP
		PISTON	for 2.6L/2.8L	TOMEI	TA202A-NS05A
		PISTON	for 2.6L/2.8L	CP	TA202A-NS05AP
		CON-ROD	for 2.5L(STD)/2.6L		TA203A-NS05A
		CON-ROD	for 2.8L		TA203A-NS05B
		CRANKSHAFT	for 2.6L	Full-C.W.	TA204B-NS05A
			for 2.8L	Full-C.W.	TA204B-NS05B
			for 2.8L	Semi-C.W.	TA204C-NS05A
	RB25DE(T) NEO6	CON-ROD	for 2.5L(STD)		TA203A-NS05A
	RB25DE	CON-ROD	for 2.5L(STD)		TA203A-NS05A
	SR20DET	STROKER KIT	2.2L	TOMEI	TA201A-NS08A
		STROKER KIT	2.2L	CP	TA201A-NS08AP
		PISTON	for 2.2L	TOMEI	TA202A-NS08A
			for 2.2L	CP	TA202A-NS08AP
			for 2.0L(STD)	TOMEI	TA202A-NS08B
		CON-ROD	for 2.0L(STD)/2.2L		TA203A-NS08A
		CRANKSHAFT	for 2.2L		TA204B-NS08A
	SR20DE SR18DE	CON-ROD	for 2.0L(STD)/1.8L(STD)		TA203A-NS08A
	KA24DE	CON-ROD	for 2.4L(STD)		TA203A-NS16A
TOYOTA	4A-G 16V	STROKER KIT	1.8L	CP	TA201A-TY01AP
		PISTON	for 1.8L	CP	TA202A-TY01AP
		CON-ROD	for 1.6L(STD)/1.8L		TA203A-TY01A
		CRANKSHAFT	for 1.8L		TA204B-TY01A
	4A-G 20V	STROKER KIT	1.8L	CP	TA201A-TY02AP
		PISTON	for 1.8L	CP	TA202A-TY02AP
		CON-ROD	for 1.6L(STD)/1.8L		TA203A-TY01A
		CRANKSHAFT	for 1.8L		TA204B-TY01A
	2JZ-GTE	STROKER KIT	3.4L	TOMEI	TA201A-TY03A
			3.4L	CP	TA201A-TY03AP
			3.6L	TOMEI	TA201A-TY03B
			3.6L	CP	TA201A-TY03BP
		PISTON	for 3.4L	TOMEI	TA202A-TY03A
			for 3.4L	CP	TA202A-TY03AP
			for 3.6L	TOMEI	TA202A-TY03B
			for 3.6L	CP	TA202A-TY03BP
			for 3.0L(STD)	TOMEI	TA202A-TY03C
		CON-ROD	for 3.0L(STD)/3.4L		TA203A-TY03A
		CON-ROD	for 3.6L		TA203A-TY03B
		CRANKSHAFT	for 3.4L		TA204B-TY03A
		CRANKSHAFT	for 3.6L		TA204B-TY03B
	1JZ-GTE	CON-ROD	for 2.5L(STD)		TA203A-TY04A
SUBARU	EJ25	STROKER KIT	2.6L	TOMEI	TA201A-SB02A
		STROKER KIT	2.6L	CP	TA201A-SB02AP
		PISTON	for 2.5L(STD)/2.6L	TOMEI	TA202A-SB02A
		PISTON	for 2.5L(STD)/2.6L	CP	TA202A-SB02AP
		CON-ROD	for 2.6L		TA203A-SB02A
		CON-ROD	for 2.5L(STD)		TA203A-SB01A
		CRANKSHAFT	for 2.6L	Full-C.W.	TA204B-SB02A
	EJ20	CON-ROD	for 2.0L(STD)		TA203A-SB01A
MITSUBISHI	4G63	STROKER KIT	2.2L	TOMEI	TA201A-MT01A
			2.2L	CP	TA201A-MT01AP
			2.3L	TOMEI	TA201A-MT01B
			2.3L	CP	TA201A-MT01BP
		PISTON	for 2.2L/2.3L	TOMEI	TA202A-MT01A
		PISTON	for 2.2L/2.3L	CP	TA202A-MT01AP
		CON-ROD	for 2.0L(STD)/2.2L		TA203A-MT01A
		CON-ROD	for 2.3L		TA203A-MT01B
		CRANKSHAFT	for 2.2L	Full-C.W.	TA204B-MT01A
		CRANKSHAFT	for 2.3L	Full-C.W.	TA204B-MT01B
	4B11	STROKER KIT	2.3L	TOMEI	TA201A-MT02A
		STROKER KIT	2.3L	CP	TA201A-MT02AP
		PISTON	for 2.3L	TOMEI	TA202A-MT02A
		PISTON	for 2.3L	CP	TA202A-MT02AP
		CON-ROD	for 2.0L(STD)/2.3L		TA203A-MT02A
		CRANKSHAFT	for 2.3L	Full-C.W.	TA204B-MT02A
