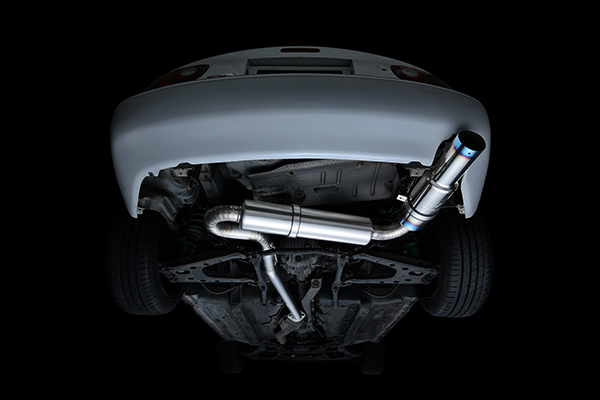

Listen to the ultra-high quality sound that only full titanium can deliver!
| PART NO. | PRODUCT NAME | MSRP(USD) | |
|---|---|---|---|
| TB6090-MZ01A | FULL TITANIUM MUFFLER KIT EXPREME Ti NA MX-5 MIATA INVENTORY→ | $1,190.00 |  |
APPLICATION
| MAKER | MODEL | ENGINE | NOTE |
|---|---|---|---|
| MAZDA | NA MX-5 MIATA | B6-ZE / BP-ZE | Not compatible for 1.6 AT models. |

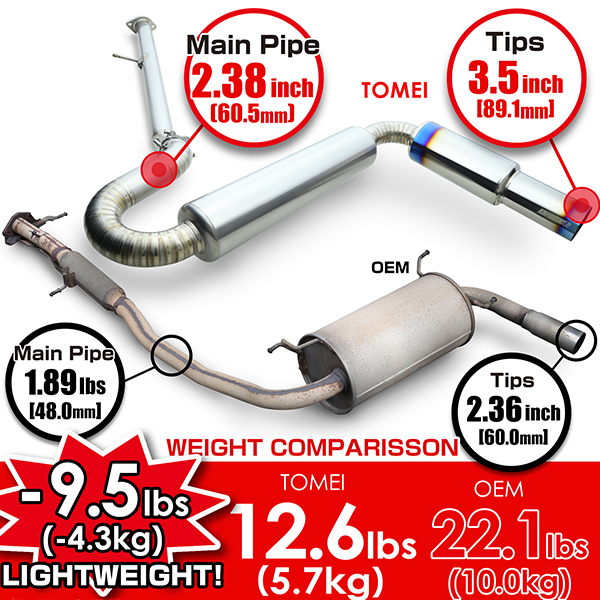

SPECIFICATION OEM COMPARISSON
MUFFLER SPEC
| TOMEI | OEM | |
|---|---|---|
| PART NO. | TB6090-MZ01A | - |
| MATERIAL | TITANIUM | - |
| MAIN PIPE DIAMETER | 60.5mm | 48.0mm |
| MAIN PIPE THICKNESS | 1.0mm | - |
| SUB SILENCER DIAMETER | 118.0mm | - |
| SUB SILENCER THICKNESS | 1.0mm | - |
| SILENCER DIAMETER | 118.0mm | 500*280*170mm |
| SILENCER THICKNESS | 1.0mm | - |
| EXIT DIAMETER | 89.1mm | 60.0mm |
| EXIT THICKNESS | 1.0mm | - |
| FLANGE THICKNESS | 8.0mm | 8.0mm |
| WEIGHT | 12.6lbs (5.7kg) | 22.1lbs (10.0kg) |
EXHAUST NOISE TEST Tested @ 4875rpm
| MODEL | PART NO. | PRODUT NAME | MSRP(USD) | |
|---|---|---|---|---|
| NA | TB6090-MZ01A | NEW!FULL TITANIUM MUFFLER KIT EXPREME Ti NA MX-5 MIATA INVENTORY→ | $1,190.00 | |
| NB | TB6090-MZ02A | FULL TITANIUM MUFFLER KIT EXPREME TI NB MX-5 MIATA INVENTORY→ | $990.00 |  |
| NC | TB6090-MZ03A | FULL TITANIUM MUFFLER KIT EXPREME TI NC MX-5 MIATA INVENTORY→ | $590.00 |  |
| TB6100-MZ03A | FULL TITANIUM MID PIPE KIT EXPREME TI NC MX-5 MIATA INVENTORY→ | $890.00 |  |
|
| ND | TB6090-MZ06A | FULL TITANIUM MUFFLER KIT EXPREME TI ND MX-5 MIATA INVENTORY→ | $990.00 |  |
APPLICATION
| MAKER | MODE | ENGINE | NOTE |
|---|---|---|---|
| MAZDA | NA MX-5 MIATA | B6-ZE / BP-ZE | Not compatible for 1.6 AT models. |
| NB MX-5 MIATA | B6-ZE/BP-ZE/BP-VE/BP-ZET | ||
| NC MX-5 MIATA | LF-VE | ||
| ND MX-5 MIATA | P5-VP/P5-VPR/PE-VPS |
EXHAUST PRODUCTS COMPATIBILITY LIST
| MODEL | CATEGORY | MATERIAL | TYPE | PARTS NO. | |
| NISSAN INFINITI | |||||
| 35 GT-R | JDM/ USDM | MUFFLER | TI | QUAD | TB6070-NS01A |
| 350Z | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-NS04A |
| EX-MANIFOLD | SUS | VQ35DE | TB6010-NS04A | ||
| Y PIPE | TI | TB6110-NS02A | |||
| MID PIPE | TI | TB6100-NS04A | |||
| VQ35HR | TB6100-NS02A | ||||
| 370Z | JDM/ USDM | MUFFLER | TI | TYPE-R (SINGLE) | TB6090-NS02A |
| Y PIPE | TI | TB6110-NS02A | |||
| MID PIPE | TI | TB6100-NS02A | |||
| 400Z | JDM/ USDM | MUFFLER | TI | TYPE-R (SINGLE) | TB6090-NS21C |
| TYPE-D (DUAL) | TB6090-NS21D | ||||
| Y PIPE | TI | TB6110-NS21A | |||
| 32 GT-R | JDM | MUFFLER | TI | SINGLE | TB6090-NS05A |
| 33 GT-R | JDM | MUFFLER | TI | SINGLE | TB6090-NS05B |
| 34 GT-R | JDM | MUFFLER | TI | SINGLE | TB6090-NS05C |
| 32,33,34 GT-R | JDM | EX-MANIFOLD | SUS | TB6010-NS05A | |
| TURBINE OUTLET | SUS | TB6020-NS05A | |||
| FRONT PIPE | TI | TB6080-NS05A | |||
| 34 SKYLINE 2DOOR | JDM | MUFFLER | TI | SINGLE | TB6090-NS06A |
| 34 SKYLINE 4DOOR | JDM | MUFFLER | TI | SINGLE | TB6090-NS06B |
| 32,33,34 SKYLINE | JDM | TURBINE OUTLET | SUS | RB20,25DET | TB6020-NS06A |
| G35 COUPE SKYLINE V35 COUPE | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-NS04G |
| EX-MANIFOLD | SUS | VQ35DE | TB6010-NS04A | ||
| Y PIPE | TI | TB6110-NS02A | |||
| MID PIPE | TI | VQ35DE | TB6100-NS04A | ||
| 2017+ Q60 | USDM | MUFFLER | TI | SINGLE | TB6090-NS21B |
| Y PIPE | TI | TB6110-NS21A | |||
| Q50,RV37 SKYLINE 400R | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-NS21A |
| Y PIPE | TI | TB6110-NS21A | |||
| 13 SILVIA, 180SX,240SX | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-NS08A |
| 14 SILVIA, 240SX | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-NS08B |
| 240SX | USDM | EX-MANIFOLD TURBO TYPE | SUS | KA24DE | TB601A-NS16B |
| 15 SILVIA | JDM | MUFFLER | TI | SINGLE | TB6090-NS08C |
| 13,14,15 SILVIA,180SX | JDM | EX-MANIFOLD | SUS | SR20DET | TB6010-NS08A |
| TURBINE OUTLET | SUS | TB6020-NS08C | |||
| VARIOUS NISSAN | MID PIPE | TI | TYPE-A | TB6100-NS00A | |
| TOYOTA | |||||
| 80 SUPRA | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-TY03A |
| MID PIPE | TI | TB6110-TY03A | |||
| ADAPTER | TI | TB6120-0000A | |||
| GR SUPRA 3.0L | JDM/ USDM | MUFFLER | TI | TYPE-R (SINGLE) | TB6090-TY06A |
| TI | TYPE-D (DUAL) | TB6090-TY06B | |||
| 100 CHASER,MARK2 | JDM | MUFFLER | TI | SINGLE | TB6090-TY04A |
| TURBINE OUTLET | SUS | TB6020-TY04A | |||
| 2013+ 86, SCION FR-S | JDM/ USDM | MUFFLER | TI | SINGLE TYPE-60S | TB6090-SB03A |
| SINGLE TYPE-60R | TB6090-SB03B | ||||
| SINGLE TYPE-80 | TB6090-SB03C | ||||
| SINGLE TYPE-80 ver.2 | TB6090-SB05A | ||||
| TYPE-D (DUAL) | TB6090-SB05B | ||||
| EX-MANIFOLD | SUS | UNEQUAL | TB6010-SB03B | ||
| EQUAL | TB6010-SB03A | ||||
| UNEQUAL ver.2 | TB6010-SB05A | ||||
| EQUAL ver.2 | TB6010-SB05B | ||||
| JOINT PIPE | SUS | TB6060-SB03A | |||
| ver.2 | TB6060-SB05A | ||||
| MID PIPE | TI | FOR 60S,60R (M/T ONLY) | TB6100-SB03A | ||
| FOR 80,ver2,DUAL (M/T ONLY) | TB6100-SB03B | ||||
| BUMPER COVER | CARBON | EARLY LH | TE301A-SB03A | ||
| EARLY RH | TE301A-SB03B | ||||
| FRP | 86 LATE LH | TE301A-SB03C | |||
| 86 LATE RH | TE301A-SB03D | ||||
| 2021+ GR86 | JDM/ USDM | MUFFLER | TI | SINGLE TYPE-80 ver.2 | TB6090-SB05A |
| TYPE-D (DUAL) | TB6090-SB05B | ||||
| EX-MANIFOLD | SUS | UNEQUAL ver.2 | TB6010-SB05A | ||
| EQUAL ver.2 | TB6010-SB05B | ||||
| JOINT PIPE | SUS | ver.2 | TB6060-SB05A | ||
| MID PIPE | TI | FOR 80,ver2,DUAL (M/T ONLY) | TB6100-SB03B | ||
| 86 LEVIN/TRUENO | JDM/ USDM | MUFFLER | TI | TYPE-R (SINGLE) | TB6090-TY01A |
| TYPE-S (SINGLE) | TB6090-TY01B | ||||
| MID PIPE | TI | TB6100-TY01A | |||
| GR COROLLA | JDM/ USDM | MUFFLER | TI | TYPE-R (SINGLE) | TB6090-TY07A |
| TYPE-D (DUAL) | TB6090-TY07B | ||||
| MITSUBISHI | |||||
| EVO7-9 JDM BUMPER | JDM | MUFFLER | TI | SINGLE | TB6090-MT01A |
| EVO8-9 USDM BUMPER | USDM | MUFFLER | TI | SINGLE | TB6090-MT01B |
| EVO4-9 | JDM/ USDM | EX-MANIFOLD | SUS | TB6010-MT01A | |
| EVO7-9 | JDM/ USDM | OUTLET COMPONENT | SUS | TB6060-MT01A | |
| MID PIPE | TI | TB6100-MT01A | |||
| EVO10 | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-MT02A |
| OUTLET COMPONENT | SUS | TB6060-MT02A | |||
| MID PIPE | TI | TB6100-MT02A | |||
| SUBARU | |||||
| 2002+ WRX,WRX STI GDF USDM | USDM | MUFFLER | TI | SINGLE | TB6090-SB02A |
| 2002+ WRX,WRX STI GD | USDM | DOWN PIPE | SUS | EJ25 | TB6060-SB02A |
| 2002+ WRX 2004+ WRX STI | JDM/ USDM | EX-MANIFOLD | SUS | UNEQUAL | TB6010-SB02A |
| EQUAL | TB6010-SB02B | ||||
| 2008+ WRX,WRX STI GH/GRF USDM | USDM | MUFFLER | TI | SINGLE | TB6090-SB02B |
| 2008+ WRX,WRX STI GR/GV/GE/GH/VA | USDM | DOWN PIPE | SUS | EJ25 | TB6060-SB02B |
| 2011+ WRX,WRX STI GE/GVF/VA USDM | USDM | MUFFLER | TI | TYPE-R (SINGLE) | TB6090-SB02C |
| TYPE-D (DUAL) | TB6090-SB02D | ||||
| 2015+ WRX | JDM/ USDM | EX-MANIFOLD | SUS | UNEQUAL | TB6010-SB04A |
| EQUAL | TB6010-SB04B | ||||
| USDM | MID PIPE | TI | TB6100-SB04A | ||
| 2022+ WRX | JDM/ USDM | MUFFLER | TI | TYPE-R (SINGLE) | TB6090-SB06A |
| TYPE-D (DUAL) | TB6090-SB06B | ||||
| WRX,WRX STI GDB A-D JDM | JDM | MUFFLER | TI | SINGLE | TB6090-SB01A |
| WRX,WRX STI GDB E-G JDM | JDM | MUFFLER | TI | SINGLE | TB6090-SB01B |
| WRX,WRX STI GR JDM | JDM | MUFFLER | TI | SINGLE | TB6090-SB01C |
| WRX, WRX STI GV/VA | JDM | MUFFLER | TI | SINGLE | TB6090-SB01D |
| JDM | DUAL | TB6090-SB02D | |||
| WRX STI TWIN SCROLL | JDM | EX-MANIFOLD | SUS | EQUAL | TB6010-SB01A |
| 2013+ BRZ | JDM/ USDM | MUFFLER | TI | SINGLE TYPE-60S | TB6090-SB03A |
| SINGLE TYPE-60R | TB6090-SB03B | ||||
| SINGLE TYPE-80 | TB6090-SB03C | ||||
| SINGLE TYPE-80 ver.2 | TB6090-SB05A | ||||
| TYPE-D (DUAL) | TB6090-SB05B | ||||
| EX-MANIFOLD | SUS | UNEQUAL | TB6010-SB03B | ||
| EQUAL | TB6010-SB03A | ||||
| UNEQUAL ver.2 | TB6010-SB05A | ||||
| EQUAL ver.2 | TB6010-SB05B | ||||
| JOINT PIPE | SUS | TB6060-SB03A | |||
| ver.2 | TB6060-SB05A | ||||
| MID PIPE | TI | FOR 60S,60R (M/T ONLY) | TB6100-SB03A | ||
| FOR 80,ver2,DUAL (M/T ONLY) | TB6100-SB03B | ||||
| BUMPER COVER | CARBON | EARLY LH | TE301A-SB03A | ||
| EARLY RH | TE301A-SB03B | ||||
| FRP | 86 LATE LH | TE301A-SB03C | |||
| 86 LATE RH | TE301A-SB03D | ||||
| 2021+ BRZ | JDM/ USDM | MUFFLER | TI | SINGLE TYPE-80 ver.2 | TB6090-SB05A |
| TYPE-D (DUAL) | TB6090-SB05B | ||||
| EX-MANIFOLD | SUS | UNEQUAL ver.2 | TB6010-SB05A | ||
| EQUAL ver.2 | TB6010-SB05B | ||||
| JOINT PIPE | SUS | ver.2 | TB6060-SB05A | ||
| MID PIPE | TI | FOR 80,ver2,DUAL (M/T ONLY) | TB6100-SB03B | ||
| MAZDA | |||||
| NA MX-5 | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-MZ01A |
| NB MX-5 | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-MZ02A |
| NC MX-5 | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-MZ03A |
| MID PIPE | TI | TB6100-MZ03A | |||
| ND MX-5 | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-MZ06A |
| FD RX-7 | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-MZ05A |
| MID PIPE | TI | TB6100-MZ05A | |||
| RX-8 | JDM/ USDM | MUFFLER | TI | SINGLE FOR EARLY MODEL | TB6090-MZ07A |
| SINGLE FOR LATE MODEL | TB6090-MZ07B | ||||
| HONDA ACURA | |||||
| S2000 | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-HN04A |
| MID PIPE | TI | TB6100-HN04A | |||
| FK8 CIVIC TYPE-R | JDM/ USDM | MUFFLER | TI | TYPE-R (SINGLE) | TB6090-HN06A |
| TYPE-S (SINGLE) | TB6090-HN06B | ||||
| TYPE-D (DUAL) | TB6090-HN06C | ||||
| FL5 CIVIC TYPE-R | JDM/ USDM | MUFFLER | TI | TYPE-R (SINGLE) | TB6090-HN06D |
| TYPE-D (DUAL) | TB6090-HN06E | ||||
| DE5 INTEGRA TYPE S | USDM | MUFFLER | TI | TYPE-D (DUAL) | TB6090-HN06F |
| HYUNDAI | |||||
| GENESIS COUPE 2.0T | USDM | MUFFLER | TI | SINGLE | TB6090-HY01A |
| MID PIPE | TI | TB6100-HY01A | |||
| BUMPER COVER | CARBON | TE301A-HY01A | |||
| FORD | |||||
| FOCUS ST | USDM | MUFFLER | TI | SINGLE | TB6090-FR02A |
| 2015+ MUSTANG ECOBOOST | USDM | MUFFLER | TI | SINGLE | TB6090-FR01A |
| BUMPER COVER | CARBON | PREMIUM | TE301A-FR01A | ||
| FASTBACK | TE301A-FR01B | ||||
