| DURATION (°) | LIFT (mm) | IN/ EX | PART No. | |||
|---|---|---|---|---|---|---|
| EACH | SET | |||||
| EVO 7/8 |  | 272 | 10.70 | IN | TA301D-MT01A | TA301B-MT01A |
| 10.20 | EX | TA301F-MT01A | ||||
 | 282 | 11.50 | IN | TA301D-MT01C | TA301B-MT01C | |
| EX | TA301F-MT01C | |||||
| EVO 9 | | 272 | 10.70 | IN | TA301D-MT01B | TA301B-MT01B |
| 10.20 | EX | TA301F-MT01B | ||||
| 282 | 11.50 | IN | TA301D-MT01D | TA301B-MT01D | |
| EX | TA301F-MT01D | |||||
REAL TIME INVENTORY→

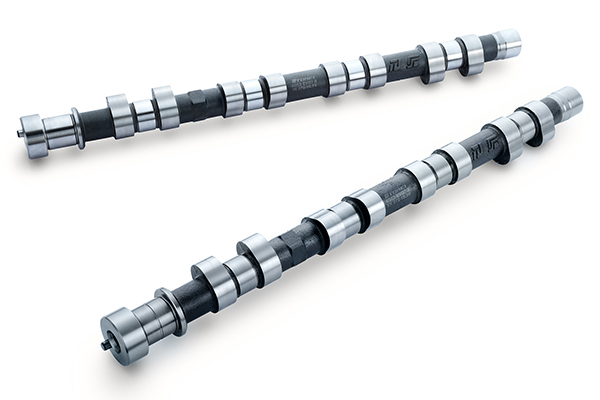

TA301B-MT01A CAMSHAFT SET PONCAM 4G63 EVO7-8 272-10.70/10.20

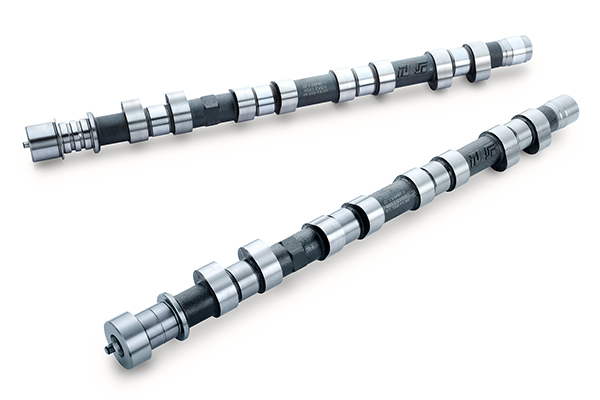

TA301B-MT01D CAMSHAFT SET PROCAM 4G63 EVO9 282-11.50
4G63 EVO7-8 IN

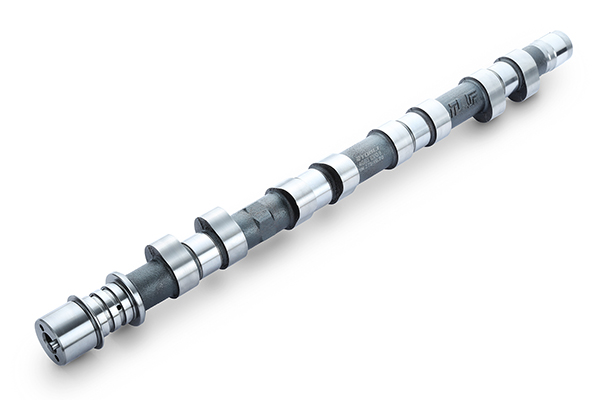

4G63 EVO9 IN

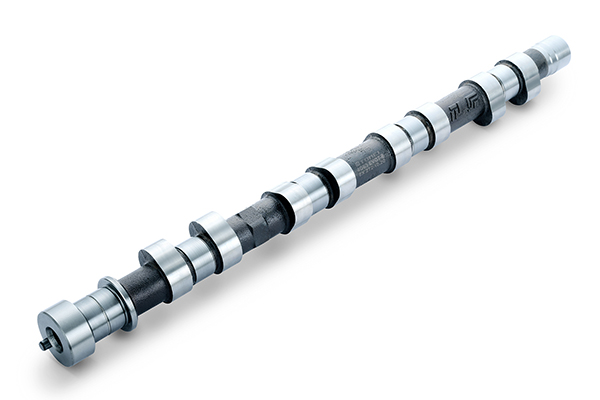

4G63 EVO7/8 EX
4G63 EVO9 EX
| DURATION (°) | LIFT (mm) | IN/EX | PART No. | ||
|---|---|---|---|---|---|
| EACH | SET | ||||
| EVO 7/8 | 272 | 10.70 | IN | TA301D-MT01A | TA301B-MT01A |
| 10.20 | EX | TA301F-MT01A | |||
| EVO 9 | 272 | 10.70 | IN | TA301D-MT01B | TA301B-MT01B |
| 10.20 | EX | TA301F-MT01B | |||
| DURATION (°) | LIFT (mm) | IN/EX | PART No. | ||
|---|---|---|---|---|---|
| EACH | SET | ||||
| EVO 7/8 | 282 | 11.50 | IN | TA301D-MT01C | TA301B-MT01C |
| EX | TA301F-MT01C | ||||
| EVO 9 | 282 | 11.50 | IN | TA301D-MT01D | TA301B-MT01D |
| EX | TA301F-MT01D | ||||
4G63 CAMSHAFT SPEC
| EVO 7/8 |
| TYPE | DURATION (°) | IN/EX | CAM LIFT (mm) | VALVE LIFT (mm) | ROCKER ARM RATIO | CENTER LINE (°) | BASE CIRCLE (Φ) | REQUIERED VALVE SPRING | REQUIERED VALVE LIFTER | REQUIERED CAM GEAR |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| HYDRAULIC | 272 | IN | 6.17 | 10.70 | 1.73 | 105 | 30 | *1 | OEM | *2 |
| EX | 5.88 | 10.20 | 1.73 | 115 | 30 | *1 | OEM | *2 | |||
| HYDRAULIC | 282 | IN | 6.65 | 11.50 | 1.73 | 110 | 30 | *3 | OEM | *4 |
| EX | 6.65 | 11.50 | 1.73 | 115 | 30 | *3 | OEM | *4 |
| EVO 9 |
| TYPE | DURATION (°) | IN/EX | CAM LIFT (mm) | VALVE LIFT (mm) | ROCKER ARM RATIO | CENTER LINE (°) | BASE CIRCLE (Φ) | REQUIERED VALVE SPRING | REQUIERED VALVE LIFTER | REQUIERED CAM GEAR |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| HYDRAULIC | 272 | IN | 6.17 | 10.70 | 1.73 | 130 | 30 | *1 | OEM | OEM |
| EX | 5.88 | 10.20 | 1.73 | 110 | 30 | *1 | OEM | *2 | |||
| HYDRAULIC | 282 | IN | 6.65 | 11.50 | 1.73 | 130 | 30 | *3 | OEM | OEM |
| EX | 6.65 | 11.50 | 1.73 | 110 | 30 | *3 | OEM | *4 |
＊1 OEM or TA304A-MT01A
EVO7 OEM Retainers are required when using TOMEI valve Springs on the EVO 8/9 models.
＊2 OEM or TA302A-MT01B
＊3 TA304A-MT01A
EVO7 OEM Retainers are required when using TOMEI valve Springs on the EVO 8/9 models.
＊4 TA302A-MT01B
