| PART No. |
PRODUCT NAME |
MSRP(USD) |
|
| TB6090-MZ06A |

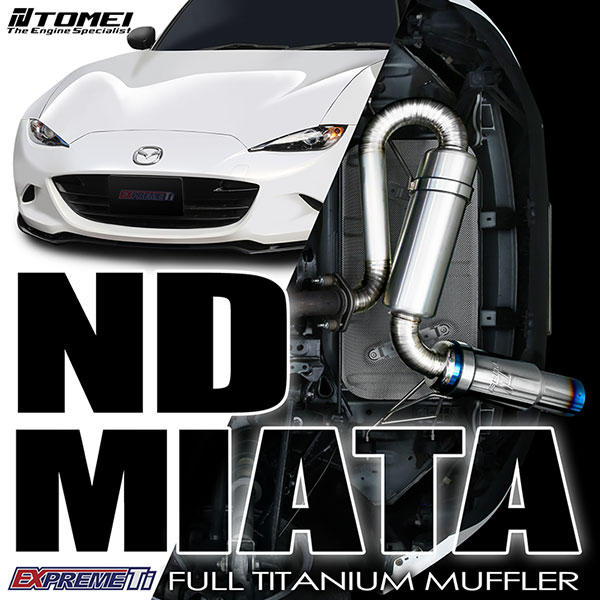

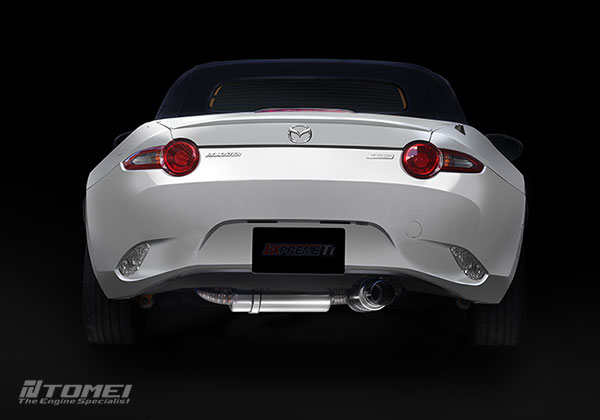

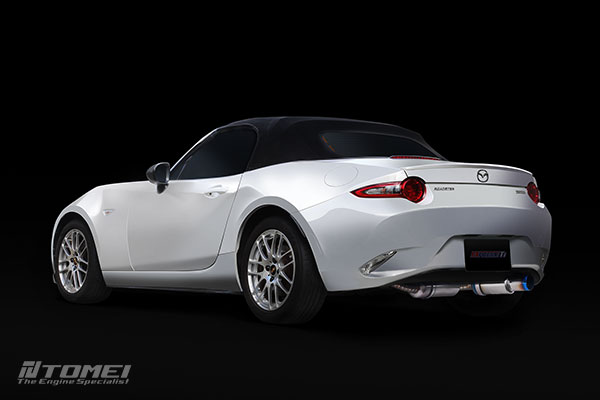

FULL TITANIUM MUFFLER
EXPREM Ti ND MIATA
INVENTORY→ |
$990.00 |
 |
|
| |
 |
 |
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
| |
Application:
MAZDA ND MIATA
|
| |
 |
 |
| |
| FULL TITANIUM MUFFLER SPECIFICATION |
| |
TOMEI |
OEM |
| PART No. |
TB6090-MZ06A |
- |
| MATERIAL |
TITANIUM |
- |

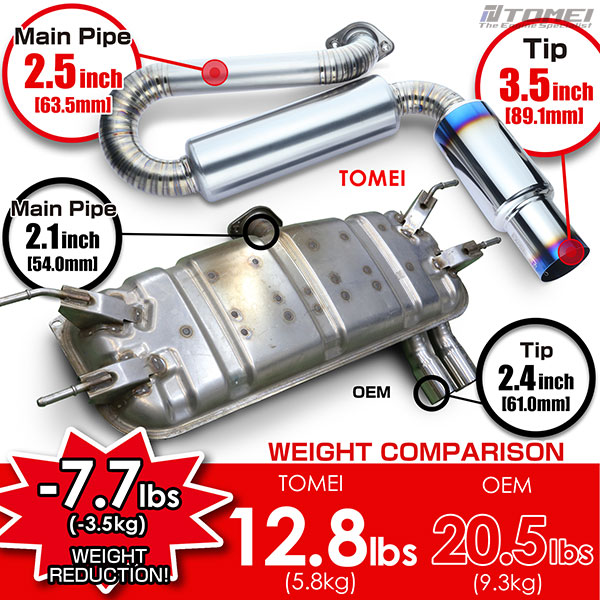

| MAIN PIPE DIAMETER |
2.5inch (63.5mm )
|
2.1inch(54.0mm) |
| MAIN PIPE THICKNESS |
1.0mm |
- |
| SUB SILENCER DIAMETER |
4.6inch (118.0mm) |
- |
| SUB SILENCER THICKNESS |
1.0mm |
- |
| SILENCER DIAMETER |
4.6inch (118.0mm) |
31.8x12.2inch
(810x310mm) |
| SILENCER THICKNESS |
1.0mm |
- |
| EXIT DIAMETER |
3.5inch (89.1mm) |
2.4inch (61.0mm) x2 |
| EXIT THICKNESS |
1.0mm |
1.2mm |
| FLANGE THICKNESS |
2.0mm |
3.0mm |
| WEIGHT |
12.8lbs (5.8kg) |
20.5lbs (9.3kg) |
|
| |
| |
 |
| Only Muffler installed |
 |
| |
| |
 |

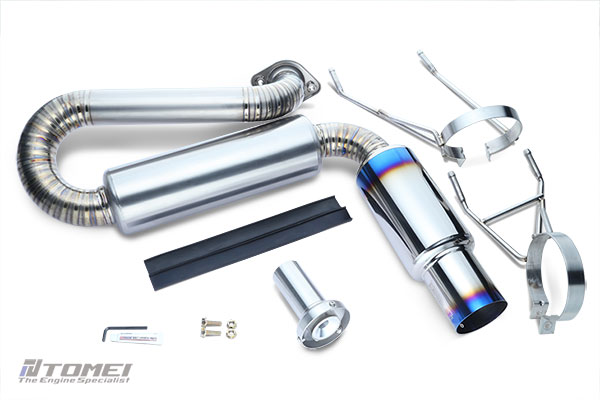

| This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat. |
|
|
 |
| |
|
