| KIT CONTENTS |
|
| STRAIGHT PIPE / F(1) |
|
| STRAIGHT PIPE / R(1) |
|
| GASKET/F (1) |
|
| GASKET/R (1) |
|
| FLANGE BOLT M10 (2) |
|
| FLANGE NUT M10 (2) |
|
| CLUMP BAND (1) |
|
| BOLT SMOOTH PASTE (1) |
|
|
|
|
|
| |

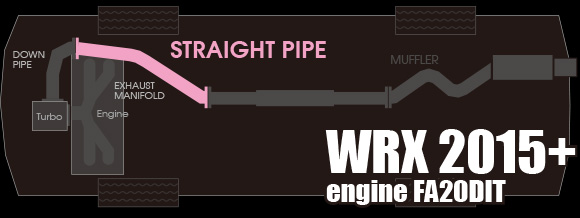

APPLICATION：WRX 2015+ USDM FA20DIT |
|
|
MSRP $590.00 (USD) |
|
| PART NUMBER：TB6100-SB04A |
|
|
|
| ※ Designed for Competition Use only |
|

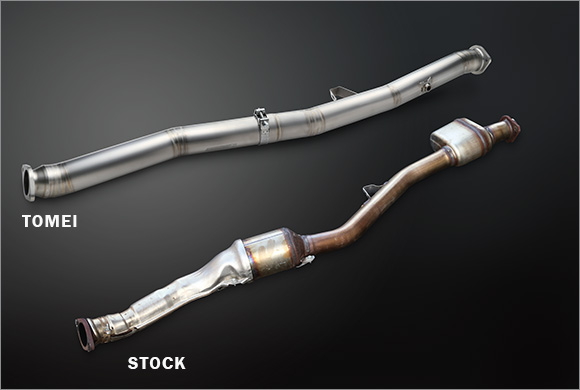

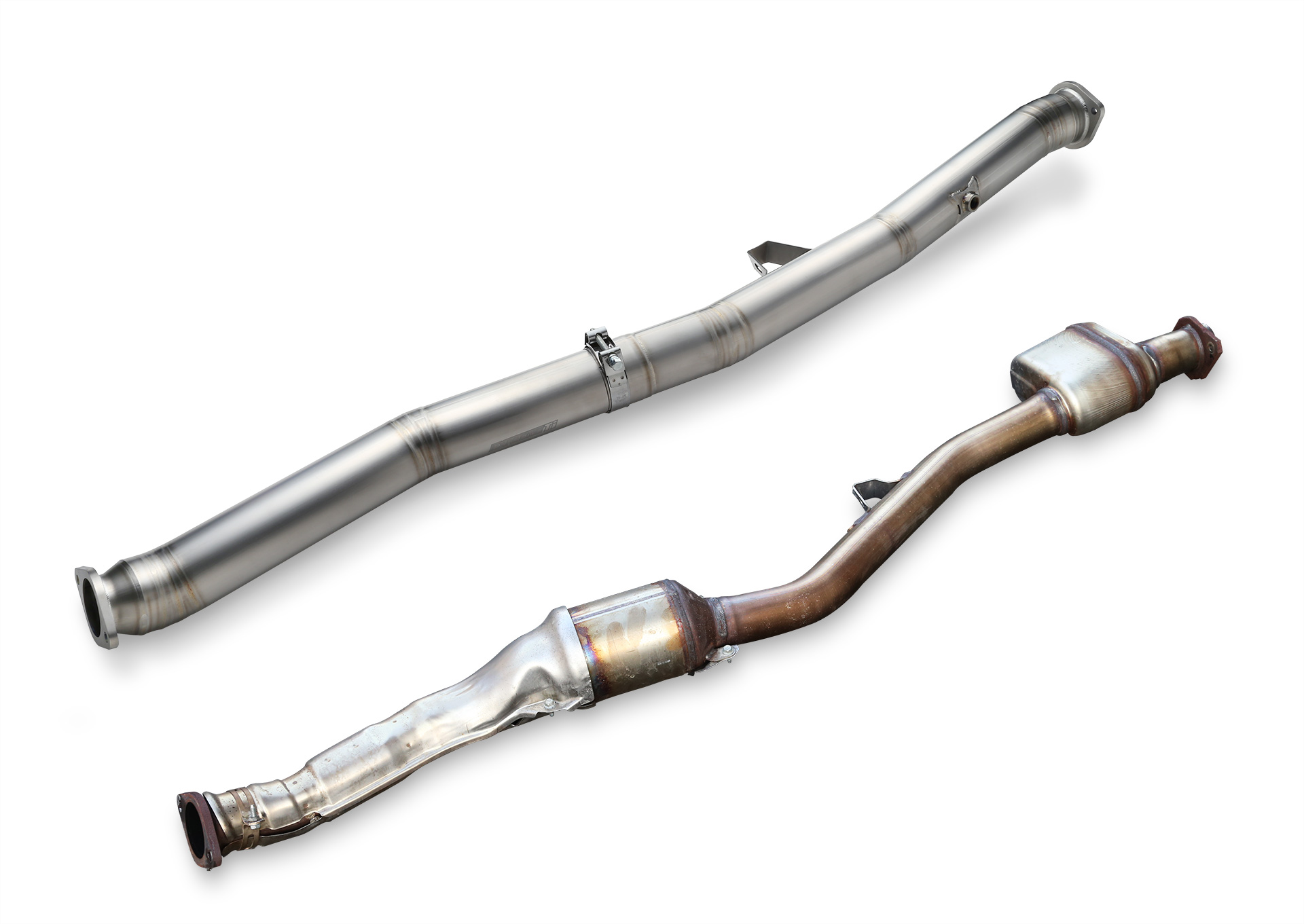

| SPECIFICATIONS COMPARISON VS STOCK |
|
 |
| |
 |
| Starting at Φ60.5 and ending at Φ80.0, the increased capacity is ideal for high performance tuning . |
|
| |
 |
Lightweight Titanium is used.

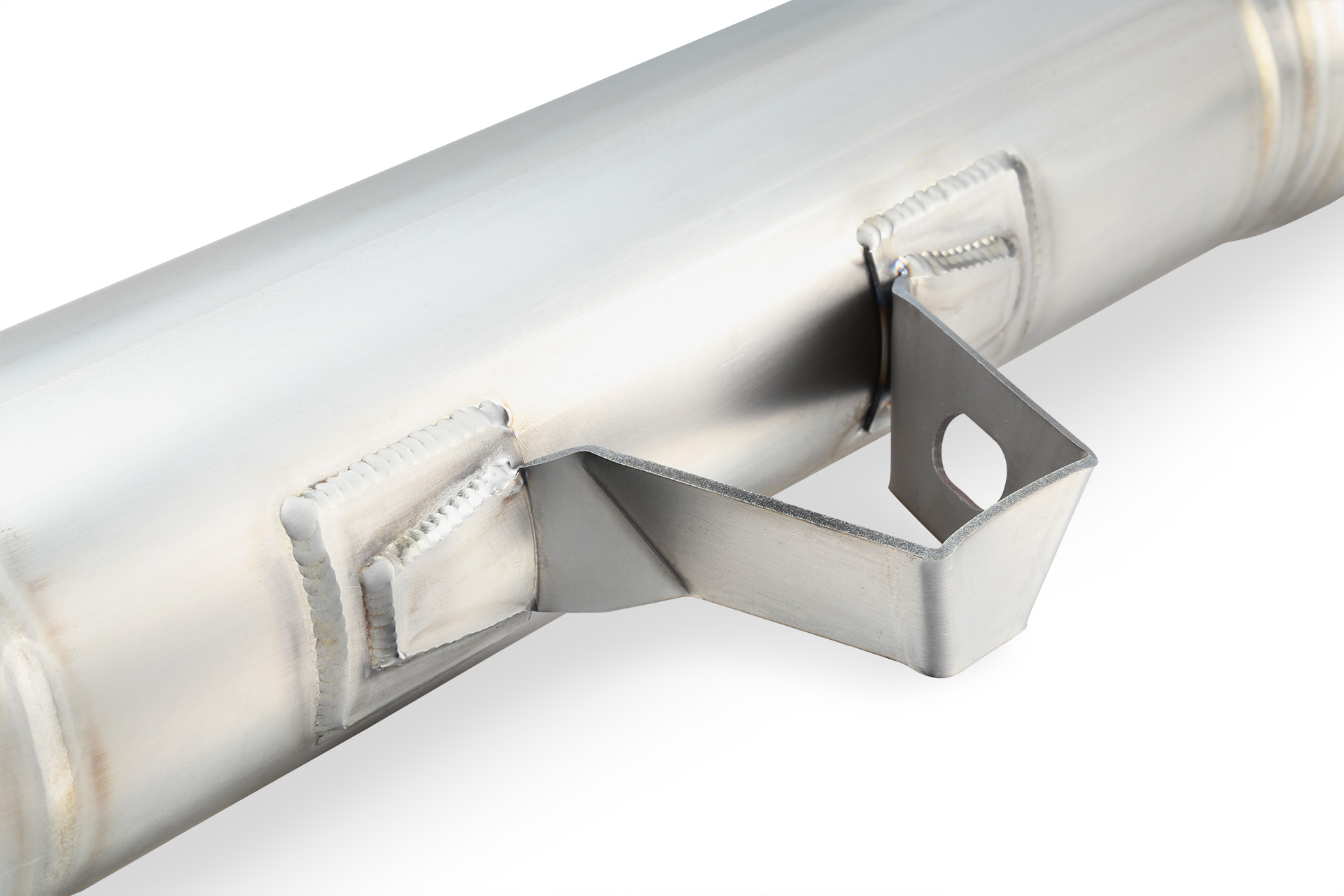

With a base plate to distributes stress. |
|
|
|
 |

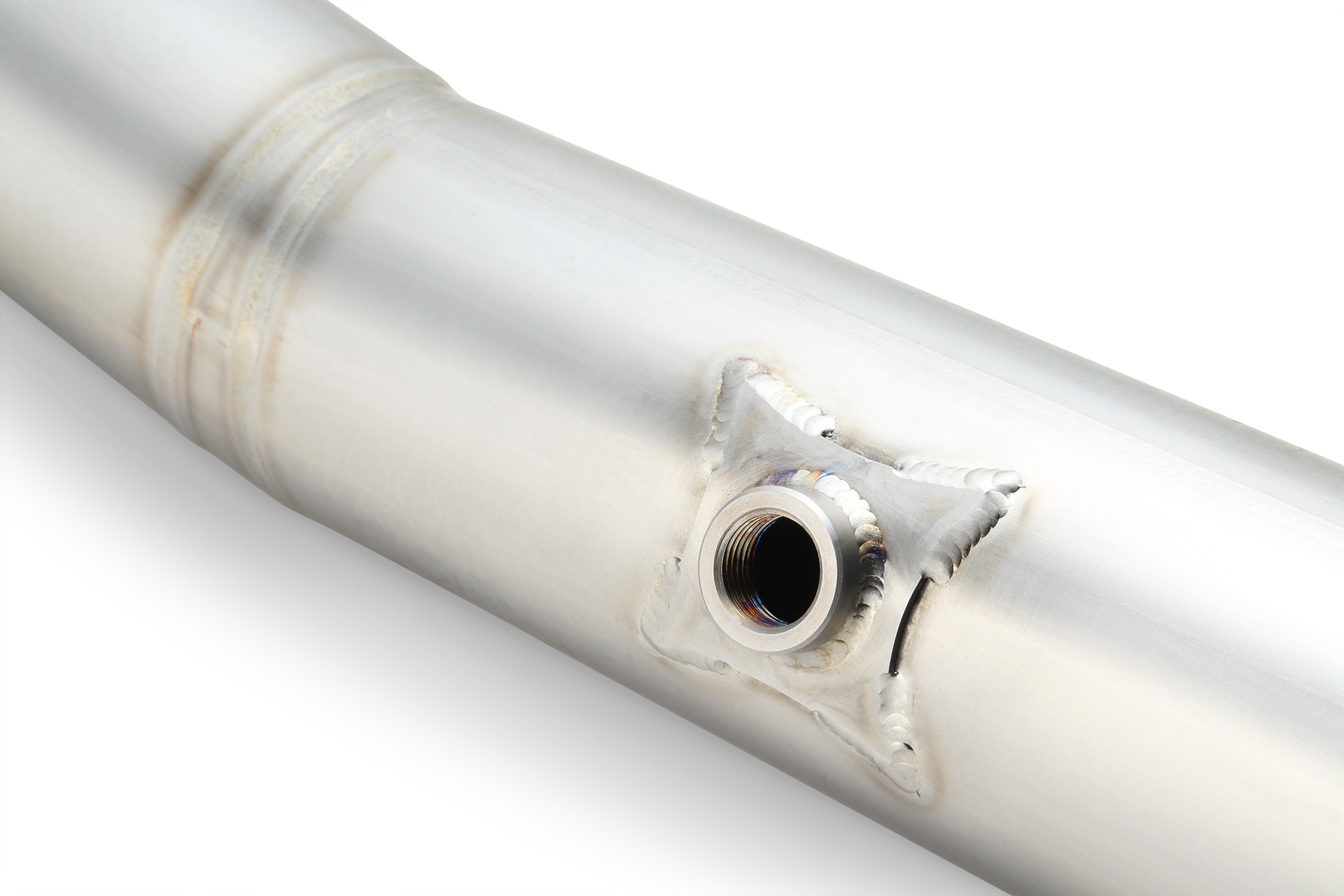

| Comes equipped with an A/F sensor boss for convenience when tuning. |
|
|
| |
|
TOMEI |
STOCK |
PART No. |
TB6100-SB04A |
- |
MSRP |
$490.00 (USD) |
- |
MATERIAL |
Ti |
- |
PIPE DIAMETER |
2.38inch(60.5mm)-
3.15inch(80.0mm) |
2.38inch(60.5mm) |
PIPE THICKNESS |
1.0mm |
2.0mm |

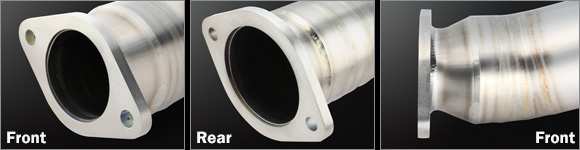

FLANGE THICKNESS |
8.0mm |
F : 10.0mm / R : 8.0mm |
WEIGHT |
5.07lb (2.3kg) |
14.55lb (6.6kg) |
|
|
|
| 9.48lbs / 4.3kg Weight Reduction! |
|
|
| |
 |
| |
|
|
|

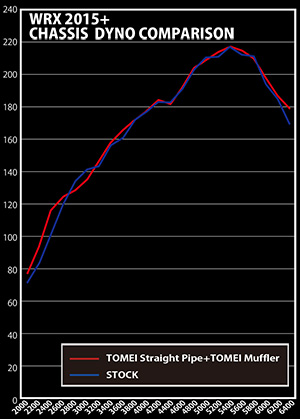

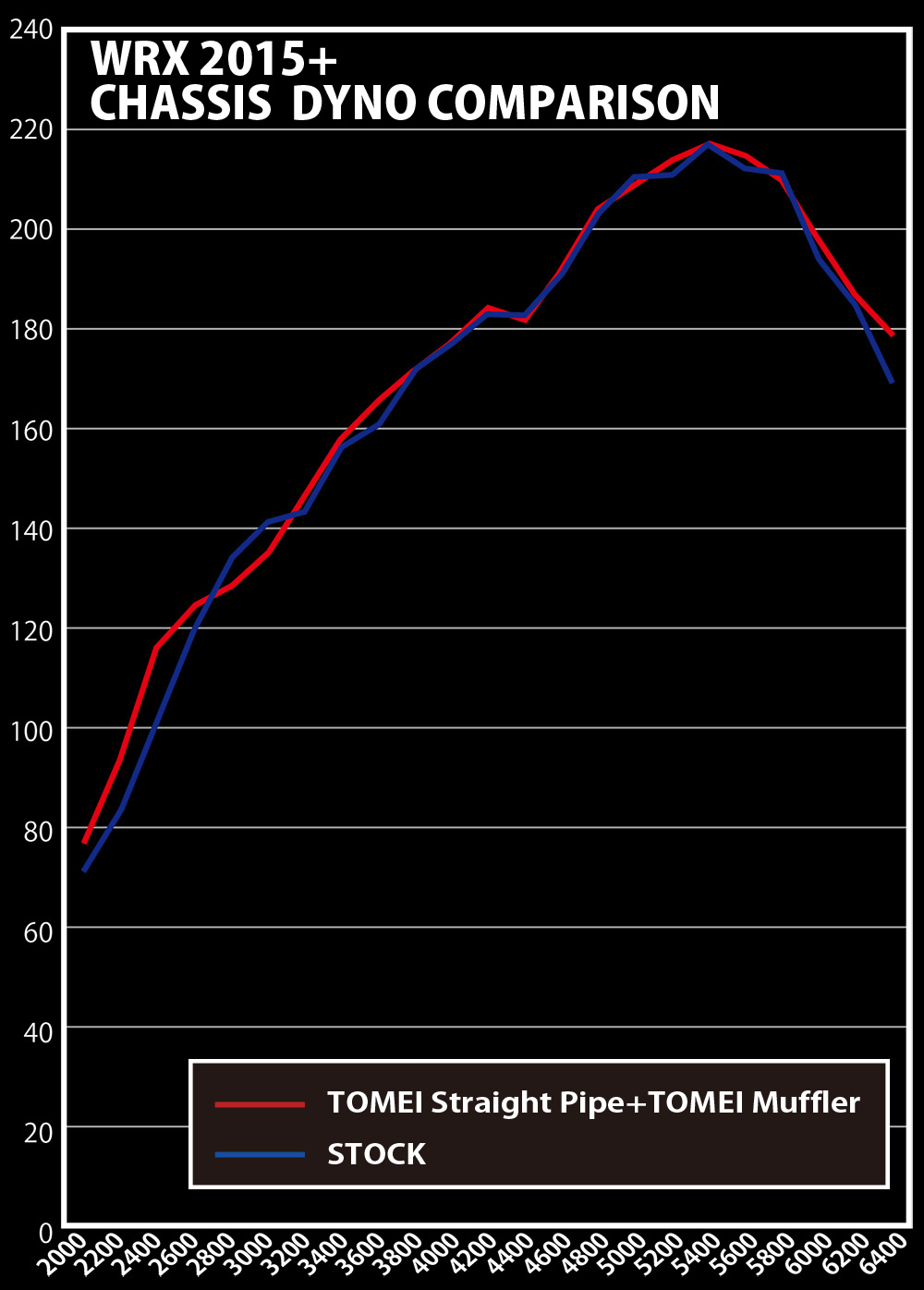

| WRX 2015+ TESTED @ 4200rpm |
|
|
|
|
|
|
