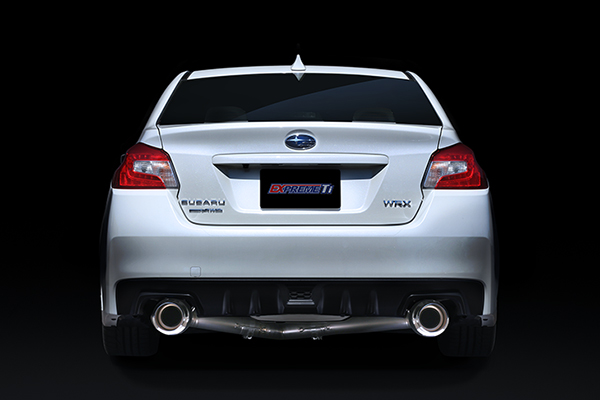

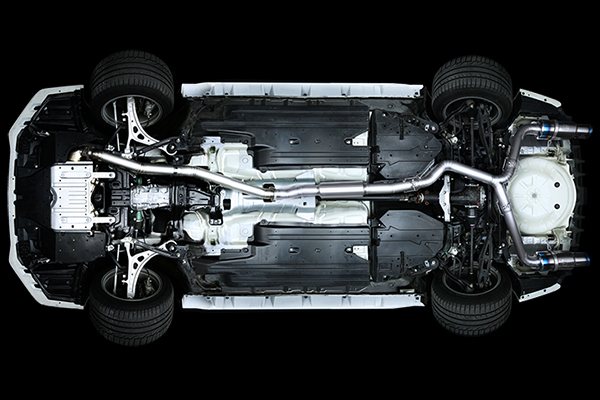

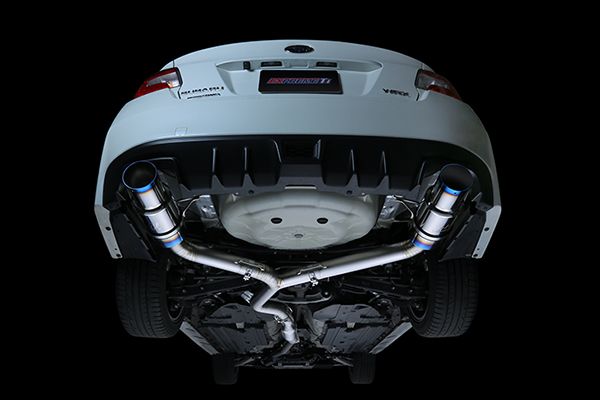

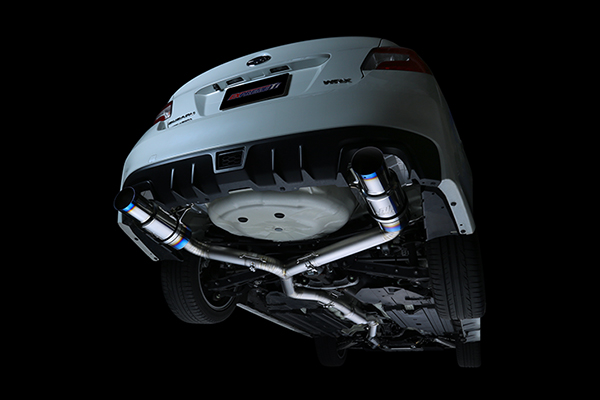

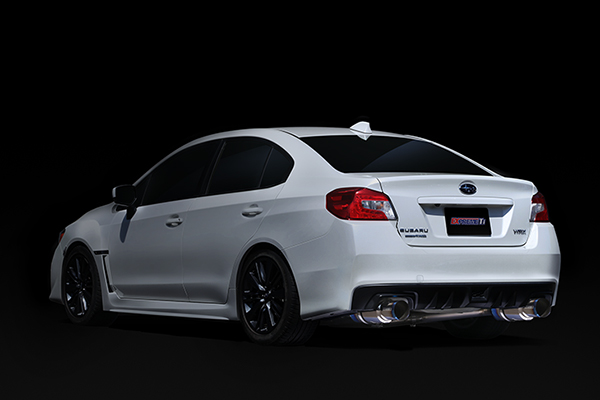

NEW!! TYPE-D [DUAL]
PART No. | PRODUCT NAME | ||
---|---|---|---|
NEW!! | TB6090-SB02D | FULL TITANIUM MUFFLER EXPREME Ti WRX/STI GV/VA TYPE-D INVENTORY→ |
APPLICATION
MAKER | ENGINE | MODEL |
---|---|---|
SUBARU | EJ20/EJ25/FA20DIT | ・2011-2014 WRX/STI GVB/GVF ・2015-2021 WRX/STI VAB/VAG |
TYPE-R [SINGLE]

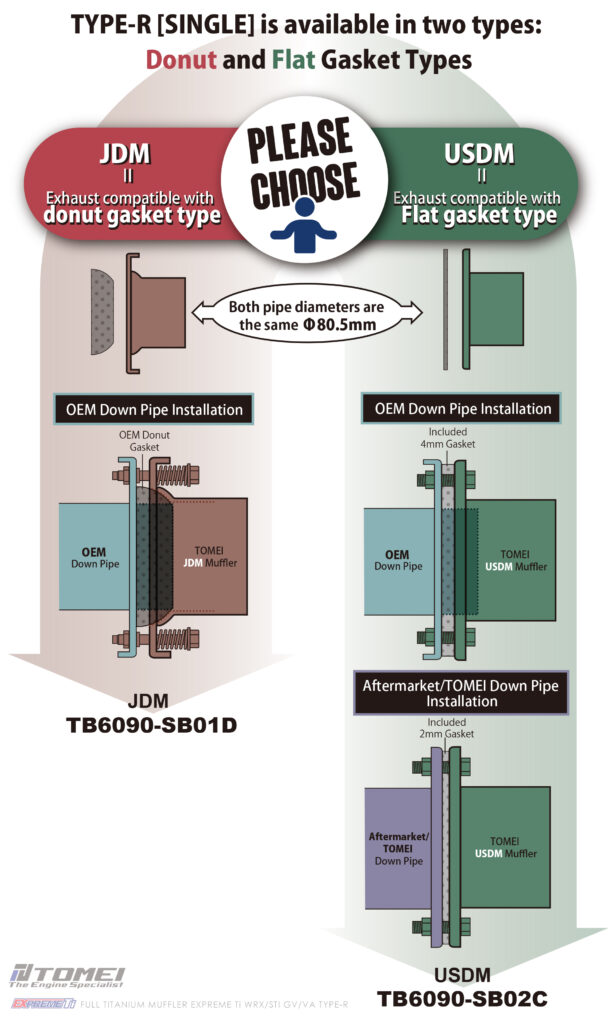

FLANGE TYPE | PART No. | PRODUCT NAME | |
---|---|---|---|
JDM [DONUT] | TB6090-SB01D | FULL TITANIUM MUFFLER EXPREME Ti WRX/STI GVF/VA TYPE-R JDM INVENTORY→ | |
USDM [FLAT] | TB6090-SB02C | FULL TITANIUM MUFFLER EXPREME Ti WRX/STI GVF/VA TYPE-R USDM INVENTORY→ |
APPLICATION
MAKER | ENGINE | MODEL |
---|---|---|
SUBARU | EJ20/EJ25/FA20DIT | ・2011-2014 WRX/STI GVB/GVF ・2015-2021 WRX/STI VAB/VAG |

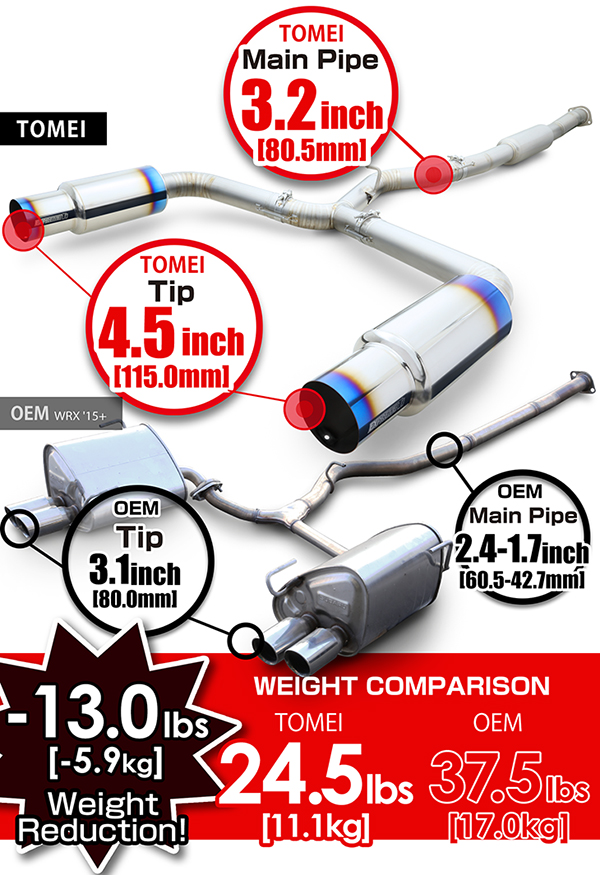

SPECIFICATION COMPARISON VS. OEM
SPECIFICATION
TOMEI | OEM (4dr sedan) | |||
---|---|---|---|---|
NEW!! TYPE-D [DUAL] | TYPE-R [SINGLE] | '11-'14 WRX/STI GVB/GVF | '15-'21 WRX/STI VAB/VAG |
|
PART NUMBER | TB6090-SB02D | JDM : TB6090-SB01D USDM : TB6090-SB02C | ||
MATERIAL | TITANIUM | TITANIUM | - | - |
MAIN PIPE DIAMETER | 3.2inch [80.5mm] | 3.2inch [80.5mm] | 2.4-1.7inch [60.5-42.7mm] | 2.4-1.7inch [60.5-42.7mm] |
MAIN PIPE THICKNESS | 1.0mm | 1.0mm | 1.5mm | 1.5mm |
SILENCER DIAMETER | 6.0inch [152.0mm] | 6.0inch [152.0mm] | - | - |
SILENCER THICKNESS | 1.0mm | 1.0mm | - | - |
SUB SILENCER DIAMETER | 4.6inch [118.0mm] | - | - | - |
SUB SILENCER THICKNESS | 1.0mm | - | - | - |
EXIT DIAMETER | 4.5inch [115.0mm] | 4.5inch [115.0mm] | 3.1inch [80.0mm] | 3.1inch [80.0mm] |
EXIT THICKNESS | 1.0mm | 1.0mm | 8.0mm | 8.0mm |
FLANGE THICKNESS | 8.0mm | JDM : 2.0mm USDM : 8.0mm | 2.0mm | 2.0mm |
WEIGHT | 24.5lbs [11.1kg] | JDM : 15.5lbs[7.0kg] USDM : 15.9lbs[7.2kg] | 50.8lbs [23.0kg] | 37.5lbs [17.0kg] |
SOUND TEST @4200rpm
*Only muffer installed
TYPE-D | |
---|---|
With SOUND REDUCER ver.2 | 81db |
With SOUND REDUCER | 85db |
WIthout SOUND REDUCER | 91db |

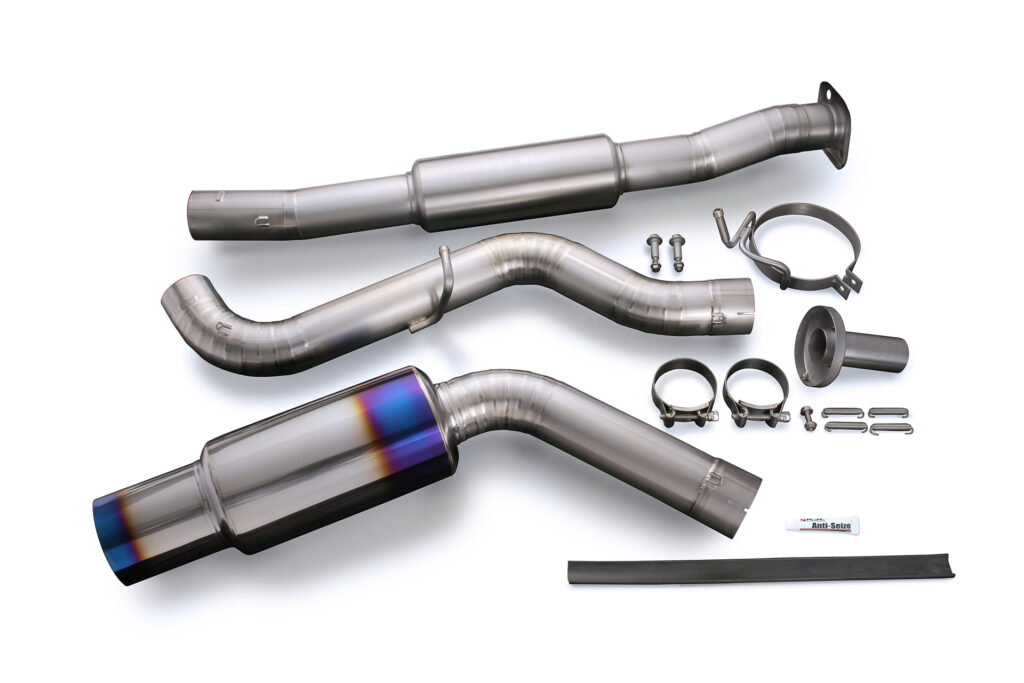

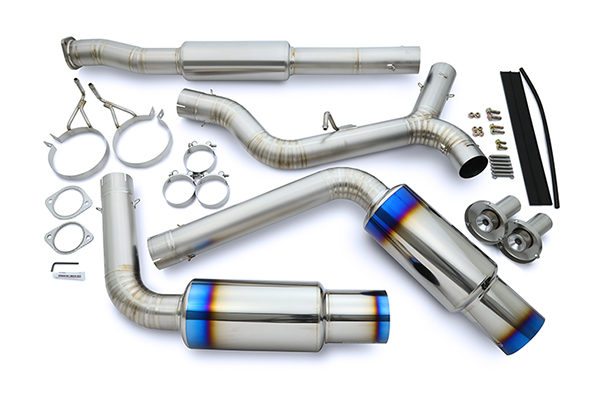

KIT CONTENTS
This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat.。
RELATED PARTS
EXHAUST PRODUCTS COMPATIBILITY LIST
MODEL | CATEGORY | MATERIAL | TYPE | PARTS NO. | |
NISSAN INFINITI | |||||
35 GT-R | JDM/ USDM | MUFFLER | TI | QUAD | TB6070-NS01A |
400Z | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-NS21C |
DUAL | TB6090-NS21D | ||||
Y PIPE | TI | TB6110-NS21A | |||
370Z | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-NS02A |
Y PIPE | TI | TB6110-NS02A | |||
MID PIPE | TI | TB6100-NS02A | |||
350Z | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-NS04A |
EX-MANIFOLD | SUS | VQ35DE | TB6010-NS04A | ||
Y PIPE | TI | TB6110-NS02A | |||
MID PIPE | TI | VQ35DE | TB6100-NS04A | ||
VQ35HR | TB6100-NS02A | ||||
32 GT-R | JDM | MUFFLER | TI | SINGLE | TB6090-NS05A |
33 GT-R | JDM | MUFFLER | TI | SINGLE | TB6090-NS05B |
34 GT-R | JDM | MUFFLER | TI | SINGLE | TB6090-NS05C |
32,33,34 GT-R | JDM | EX-MANIFOLD | SUS | TB6010-NS05A | |
TURBINE OUTLET | SUS | TB6020-NS05A | |||
FRONT PIPE | TI | TB6080-NS05A | |||
34 SKYLINE 2DOOR | JDM | MUFFLER | TI | SINGLE | TB6090-NS06A |
34 SKYLINE 4DOOR | JDM | MUFFLER | TI | SINGLE | TB6090-NS06B |
32,33,34 SKYLINE | JDM | TURBINE OUTLET | SUS | RB20,25DET | TB6020-NS06A |
13 SILVIA, 180SX,240SX | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-NS08A |
14 SILVIA, 240SX | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-NS08B |
15 SILVIA | JDM | MUFFLER | TI | SINGLE | TB6090-NS08C |
13,14,15 SILVIA,180SX | JDM | EX-MANIFOLD | SUS | SR20DET | TB6010-NS08A |
TURBINE OUTLET | SUS | SR20DET | TB6020-NS08C | ||
VARIOUS NISSAN | MID PIPE | TI | TYPE-A | TB6100-NS00A | |
2017+ Q60 | USDM | MUFFLER | TI | SINGLE | TB6090-NS21B |
Y PIPE | TI | TB6110-NS21A | |||
G35 COUPE SKYLINE V35 COUPE | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-NS04G |
EX-MANIFOLD | SUS | VQ35DE | TB6010-NS04A | ||
Y PIPE | TI | TB6110-NS02A | |||
MID PIPE | TI | VQ35DE | TB6100-NS04A | ||
Q50,RV37 SKYLINE 400R | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-NS21A |
Y PIPE | TI | TB6110-NS21A | |||
TOYOTA | |||||
2013+ 86, SCION FR-S | JDM/ USDM | MUFFLER | TI | SINGLE 60S | TB6090-SB03A |
SINGLE 60R | TB6090-SB03B | ||||
SINGLE 80 | TB6090-SB03C | ||||
SINGLE 80 ver.2 | TB6090-SB05A | ||||
DUAL | TB6090-SB05B | ||||
EX-MANIFOLD | SUS | UNEQUAL | TB6010-SB03B | ||
EQUAL | TB6010-SB03A | ||||
UNEQUAL ver.2 | TB6010-SB05A | ||||
EQUAL ver.2 | TB6010-SB05B | ||||
JOINT PIPE | SUS | TB6060-SB03A | |||
ver.2 | TB6060-SB05A | ||||
MID PIPE | TI | FOR 60S,60R (M/T ONLY) | TB6100-SB03A | ||
FOR 80,ver2,DUAL (M/T ONLY) | TB6100-SB03B | ||||
BUMPER COVER | CARBON | EARLY LH | TE301A-SB03A | ||
EARLY RH | TE301A-SB03B | ||||
FRP | 86 LATE LH | TE301A-SB03C | |||
86 LATE RH | TE301A-SB03D | ||||
2021+ GR86 | JDM/ USDM | MUFFLER | TI | SINGLE 80 ver.2 | TB6090-SB05A |
DUAL | TB6090-SB05B | ||||
EX-MANIFOLD | SUS | UNEQUAL ver.2 | TB6010-SB05A | ||
EQUAL ver.2 | TB6010-SB05B | ||||
JOINT PIPE | SUS | ver.2 | TB6060-SB05A | ||
MID PIPE | TI | FOR 80,ver2,DUAL (M/T ONLY) | TB6100-SB03B | ||
GR SUPRA 3.0L | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-TY06A |
TI | DUAL | TB6090-TY06B | |||
80 SUPRA | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-TY03A |
MID PIPE | TI | TB6110-TY03A | |||
ADAPTER | TI | TB6120-0000A | |||
86 LEVIN/TRUENO | JDM/ USDM | MUFFLER | TI | SINGLE R | TB6090-TY01A |
SINGLE S | TB6090-TY01B | ||||
MID PIPE | TI | TB6100-TY01A | |||
100 CHASER,MARK2 | JDM | MUFFLER | TI | SINGLE | TB6090-TY04A |
TURBINE OUTLET | SUS | TB6020-TY04A | |||
MITSUBISHI | |||||
EVO7-9 JDM BUMPER | JDM | MUFFLER | TI | SINGLE | TB6090-MT01A |
EVO8-9 USDM BUMPER | USDM | MUFFLER | TI | SINGLE | TB6090-MT01B |
EVO4-9 | JDM/ USDM | EX-MANIFOLD | SUS | TB6010-MT01A | |
EVO7-9 | JDM/ USDM | OUTLET COMPONENT | SUS | TB6060-MT01A | |
MID PIPE | TI | TB6100-MT01A | |||
EVO10 | JDM/ USDM | MUFFLER | TI | SINGLE | TB6090-MT02A |
OUTLET COMPONENT | SUS | TB6060-MT02A | |||
MID PIPE | TI | TB6100-MT02A | |||
SUBARU | |||||
2013+ BRZ | JDM/ USDM | MUFFLER | TI | SINGLE 60S | TB6090-SB03A |
SINGLE 60R | TB6090-SB03B | ||||
SINGLE 80 | TB6090-SB03C | ||||
SINGLE 80 ver.2 | TB6090-SB05A | ||||
DUAL | TB6090-SB05B | ||||
EX-MANIFOLD | SUS | UNEQUAL | TB6010-SB03B | ||
EQUAL | TB6010-SB03A | ||||
UNEQUAL ver.2 | TB6010-SB05A | ||||
EQUAL ver.2 | TB6010-SB05B | ||||
JOINT PIPE | SUS | TB6060-SB03A | |||
ver.2 | TB6060-SB05A | ||||
MID PIPE | TI | FOR 60S,60R (M/T ONLY) | TB6100-SB03A | ||
FOR 80,ver2,DUAL (M/T ONLY) | TB6100-SB03B | ||||
BUMPER COVER | CARBON | EARLY LH | TE301A-SB03A | ||
EARLY RH | TE301A-SB03B | ||||
FRP | 86 LATE LH | TE301A-SB03C | |||
86 LATE RH | TE301A-SB03D | ||||
2021+ BRZ | JDM/ USDM | MUFFLER | TI | SINGLE 80 ver.2 | TB6090-SB05A |
DUAL | TB6090-SB05B | ||||
EX-MANIFOLD | SUS | UNEQUAL ver.2 | TB6010-SB05A | ||
EQUAL ver.2 | TB6010-SB05B | ||||
JOINT PIPE | SUS | ver.2 | TB6060-SB05A | ||
MID PIPE | TI | FOR 80,ver2,DUAL (M/T ONLY) | TB6100-SB03B | ||
2002+ WRX,WRX STI GDF USDM | USDM | MUFFLER | TI | SINGLE | TB6090-SB02A |
2002+ WRX,WRX STI GD | USDM | DOWN PIPE | SUS | EJ25 | TB6060-SB02A |
2008+ WRX,WRX STI GH/GRF USDM | USDM | MUFFLER | TI | SINGLE | TB6090-SB02B |
2011+ WRX,WRX STI GE/GVF/VA USDM | USDM | MUFFLER | TI | SINGLE | TB6090-SB02C |
DUAL | TB6090-SB02D | ||||
2008+ WRX,WRX STI GR/GV/GE/GH/VA | USDM | DOWN PIPE | SUS | EJ25 | TB6060-SB02B |
2002+ WRX 2004+ WRX STI | JDM/ USDM | EX-MANIFOLD | SUS | UNEQUAL | TB6010-SB02A |
EQUAL | TB6010-SB02B | ||||
2015+ WRX | JDM/ USDM | EX-MANIFOLD | SUS | UNEQUAL | TB6010-SB04A |
EQUAL | TB6010-SB04B | ||||

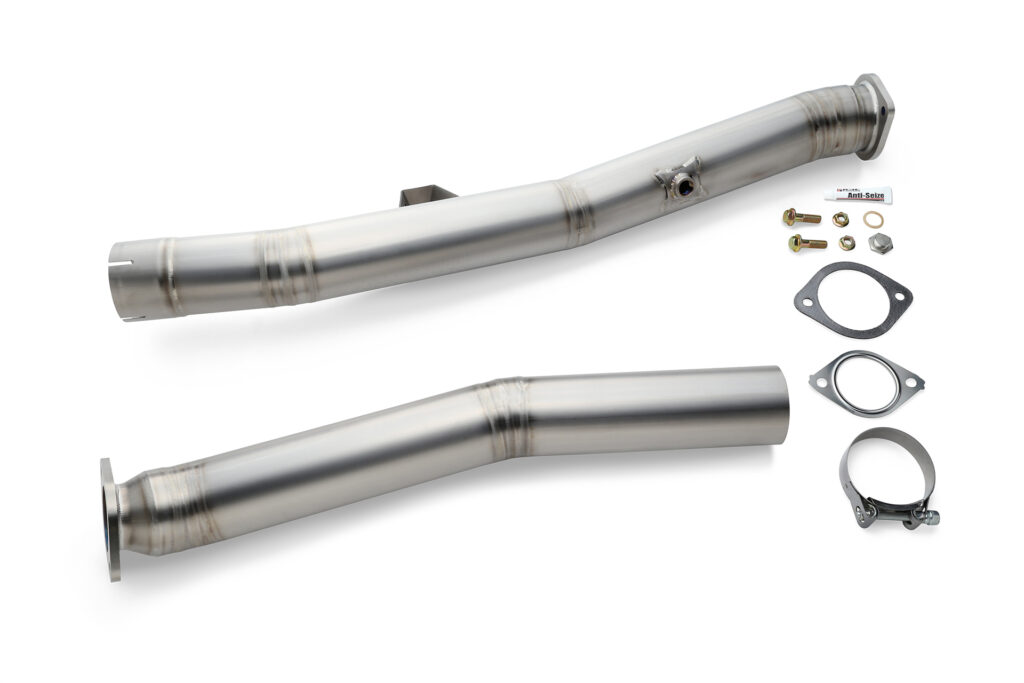

USDM | MID PIPE | TI | TB6100-SB04A | ||
