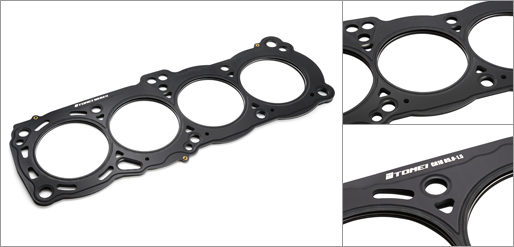

CA18DE[T] HEAD GASKET

BORE
THICKNESS
PART NO.
PREVIOUS
PART NO.
MSRP
MATERIAL
Φ85.0
1.2mm
TA4070-NS11A
11044R472G
$120.00
Metal
1.5mm
TA4070-NS11B



CROSS SECTION
Φ85.0 - 1.5mm
Φ85.0 -1.2mm



BEAD TYPE
OPPOSING TYPE

TOPSIDE
RECESSED

UNDERSIDE
RAISED
*Images are for illustration purposes only.

SEAL TYPE
STOPPER TYPE

STOPPER (TOP SIDE)

STOPPER (UNDER SIDE)
*Images are for illustration purposes only.

COMPRESSION RATIO CALCULATION TOOLS

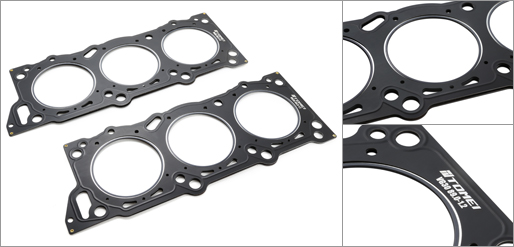

VG30DE[TT] HEAD GASKET

BORE
THICKNESS
PART NO.
PREVIOUS
PART NO.
MSRP
MATERIAL
Φ89.0
1.2mm
TA4070-NS10A
11044R756G
$180.00
Metal
1.5mm
TA4070-NS10B



CROSS SECTION
Φ89.0 - 1.5mm
Φ89.0 -1.2mm



BEAD TYPE

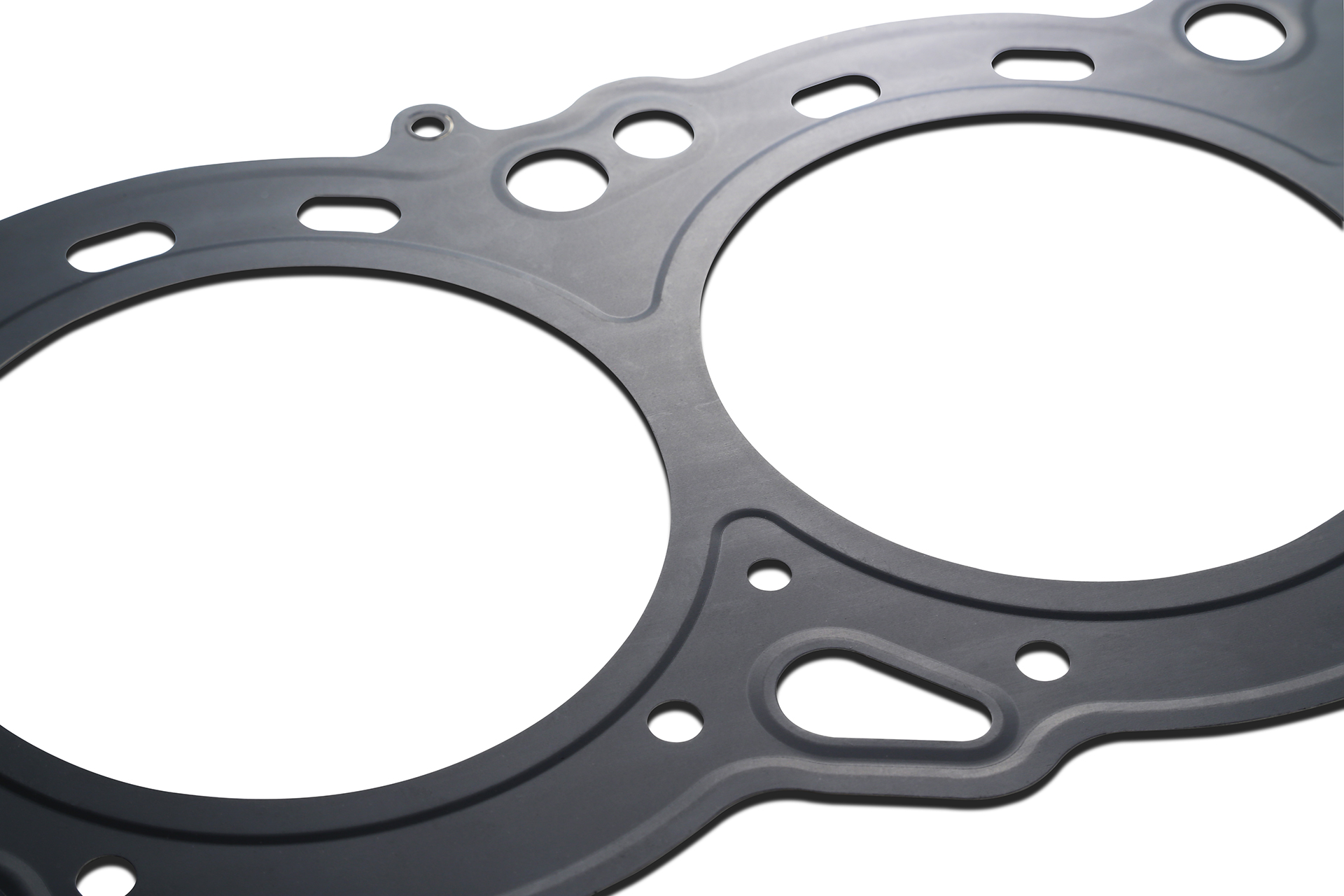

FLAT TYPE


*Images are for illustration purposes only.

SEAL TYPE
GROMMET TYPE

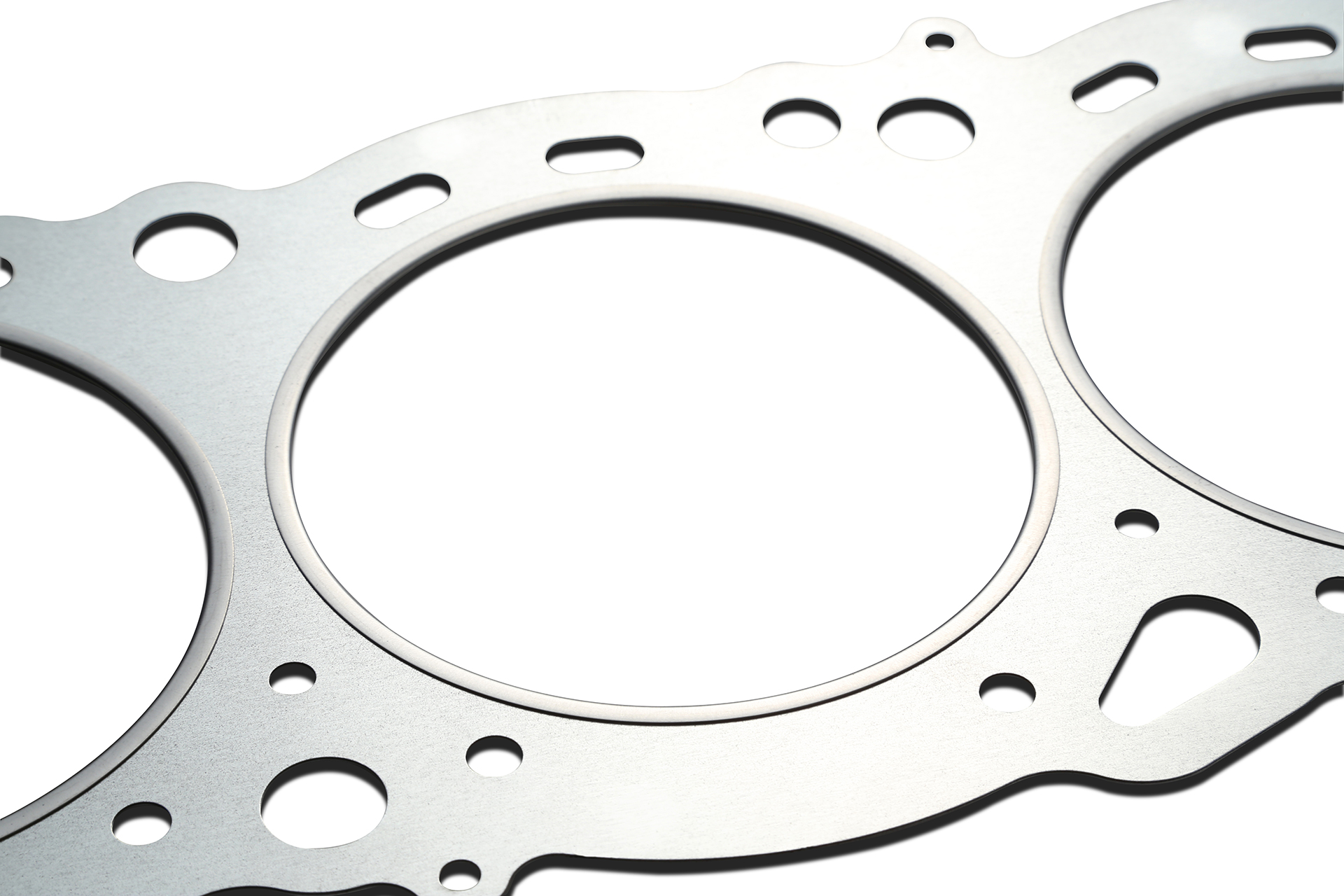

GROMMET (TOP SIDE)

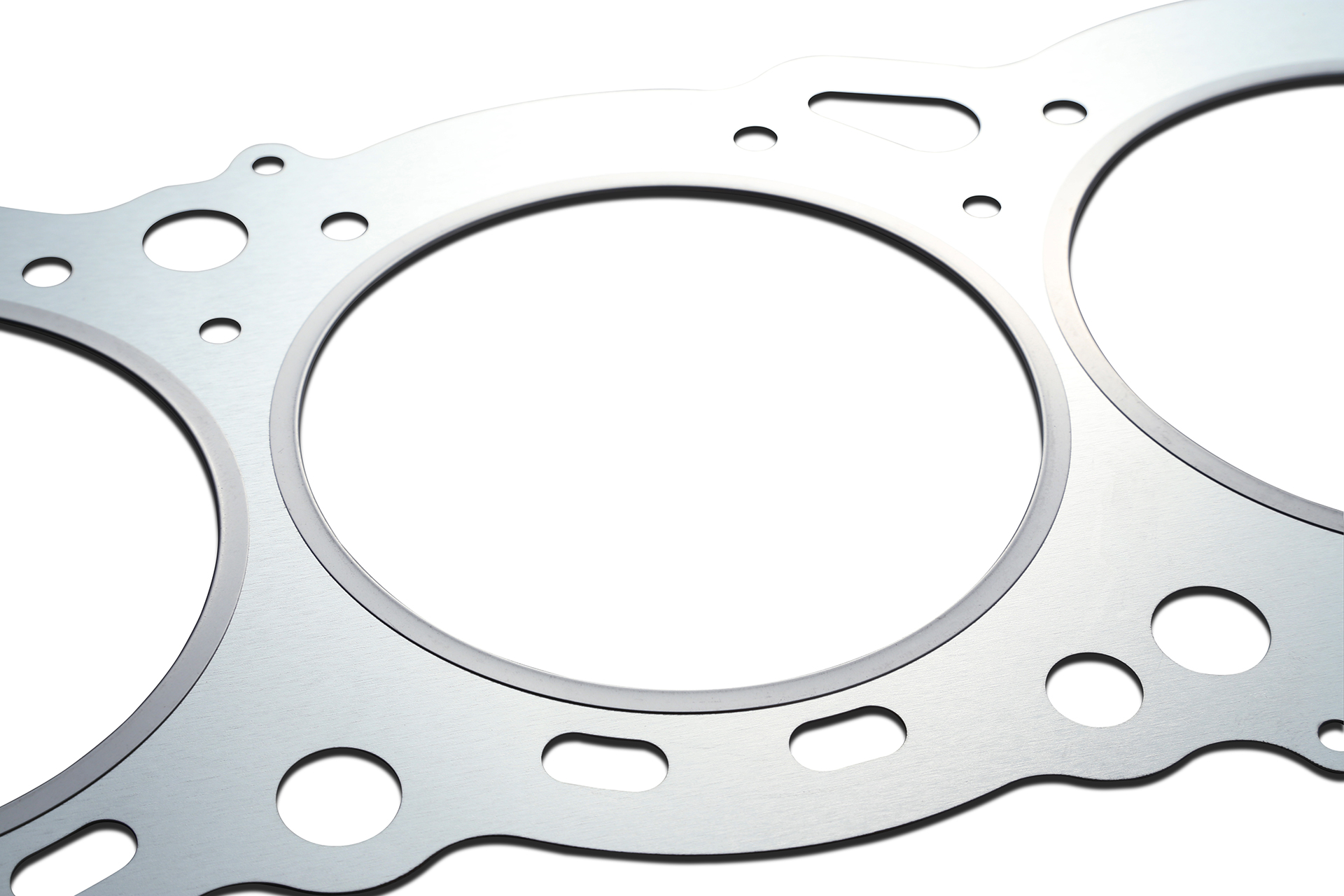

GROMMET (UNDER SIDE)
*Images are for illustration purposes only.

COMPRESSION RATIO CALCULATION TOOLS

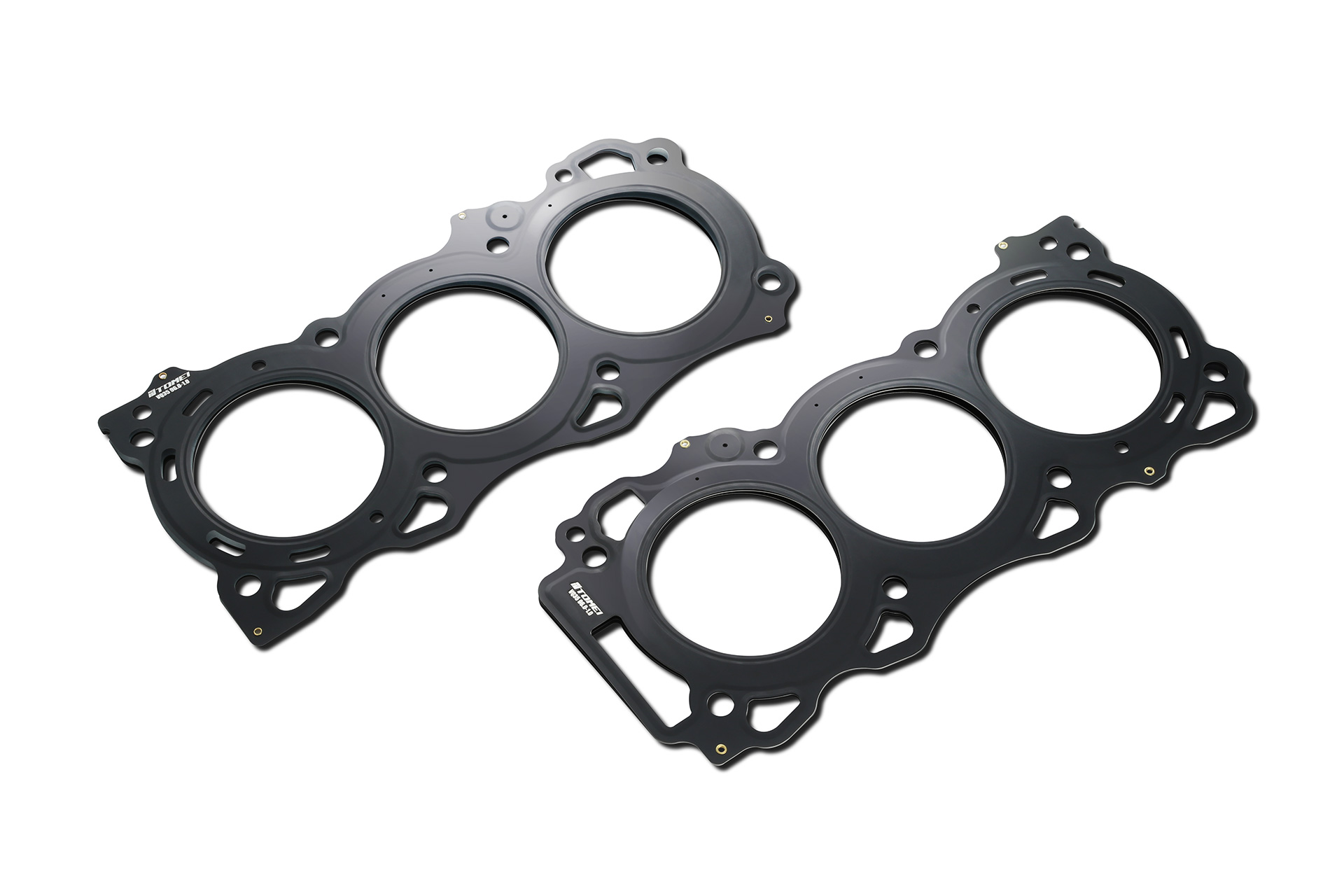

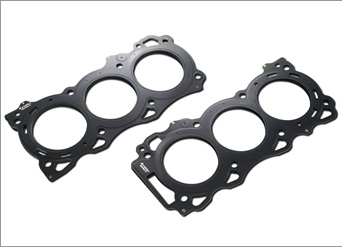

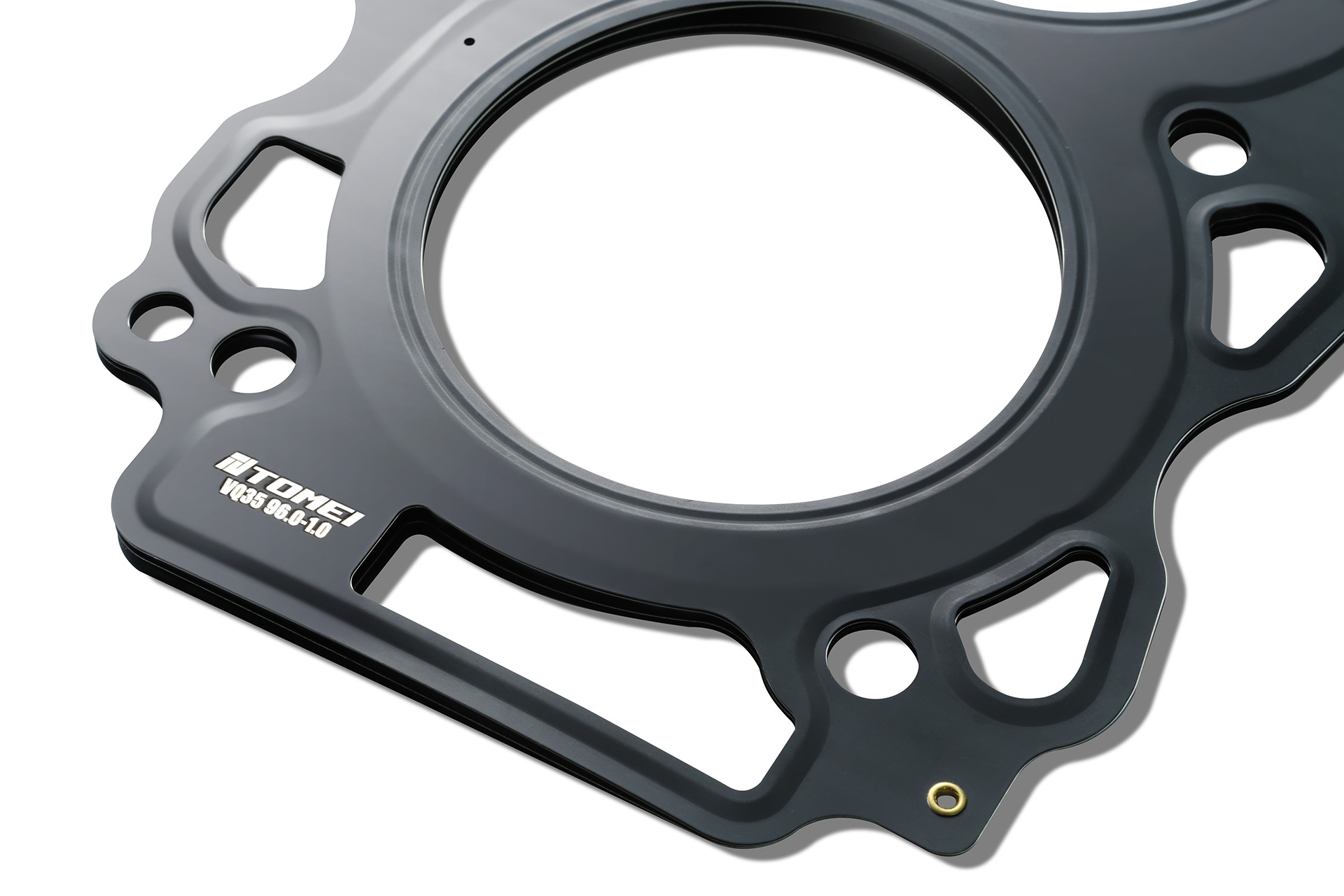

VQ35DE HEAD GASKET

BORE
THICKNESS
PART NO.
MSRP
MATERIAL
Φ96.0
0.7mm
TA4070-NS04A
$180.00
2pc. set
1.0mm
TA4070-NS04B

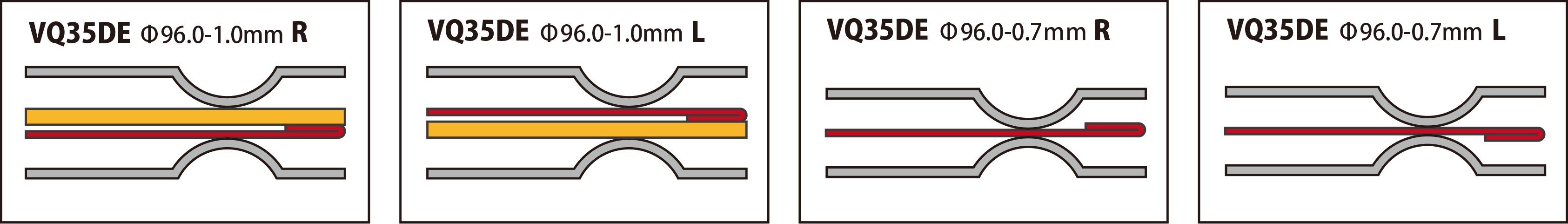

CROSS SECTION
Φ96.0 - 1.0 R
Φ96.0 - 1.0 L
Φ96.0 - 0.7 R
Φ96.0 - 0.7 L


BEAD TYPE
OPPOSING TYPE

TOPSIDE
RECESSED

UNDERSIDE
RAISED
*Images are for illustration purposes only.

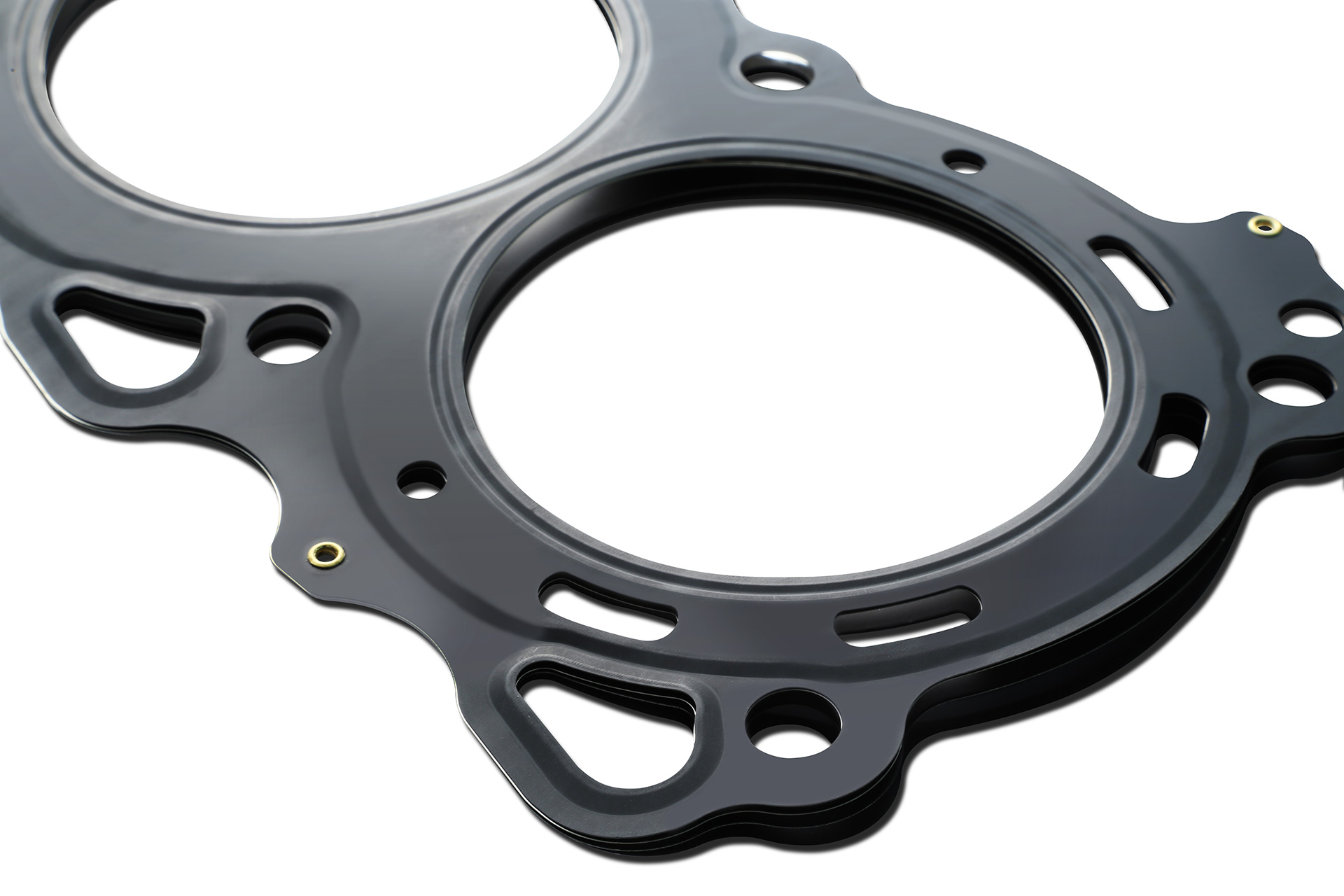

SEAL TYPE
STOPPER TYPE

STOPPER (TOP SIDE)

STOPPER (UNDER SIDE)
*Images are for illustration purposes only.


COMPRESSION RATIO CALCULATION TOOLS


@
