DRAMATIC WEIGHT REDUCTION
REDEFINE YOUR S2000!


Application : HONDA S2000 AP1/AP2 ‘99-’09
MSRP $1,090.00 (USD)
PART NUMBERFTB6090-HN04A

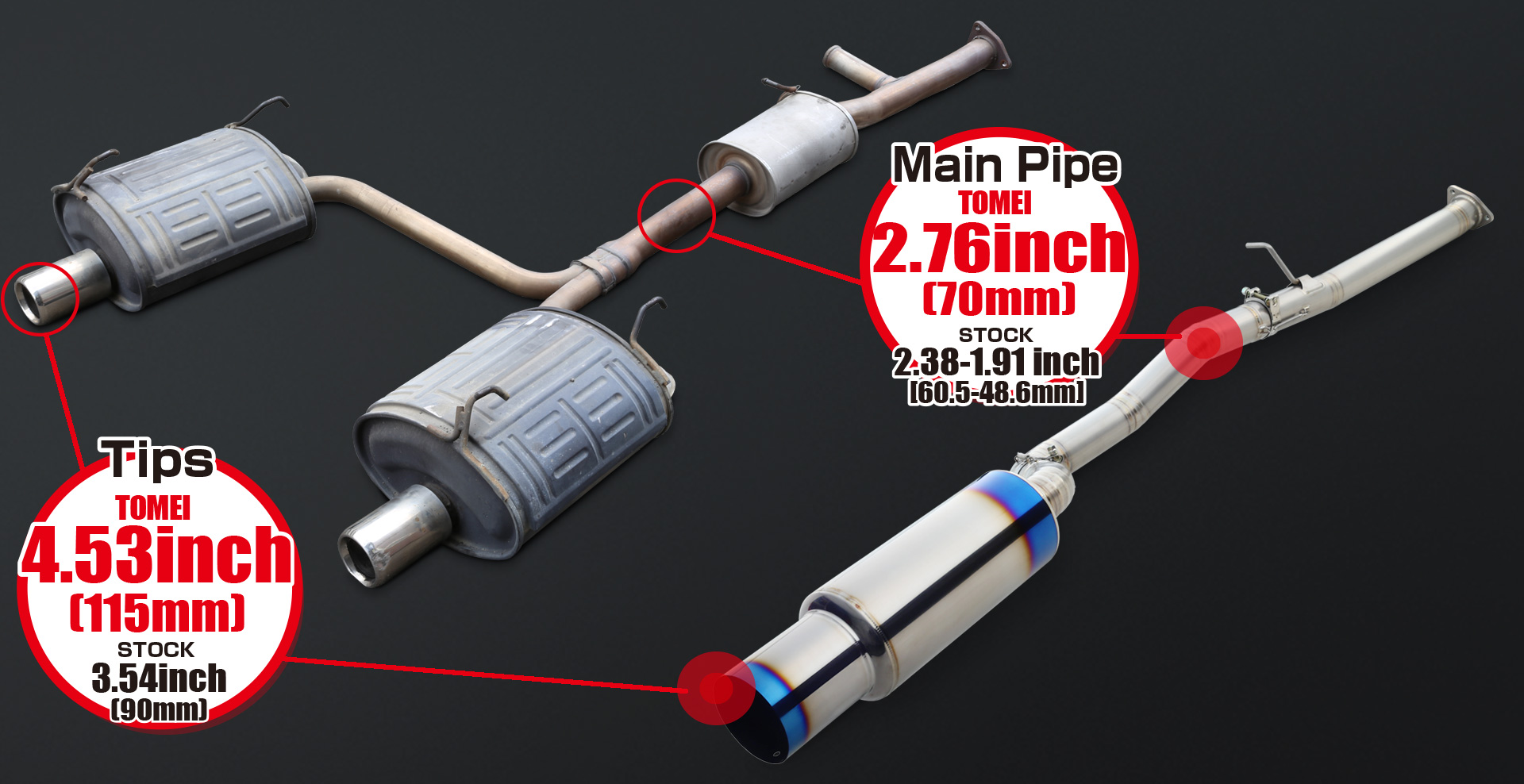

SPECIFICATION COMPARISON VS STOCK

TOMEI
STOCK
PART No.
TB6090-HN04A
|
MSRP
$1,090.00 (USD) |
MATERIAL
Ti
|
MAIN PIPE A DIAMETER
2.76inch(70mm)
2.38inch(60.5mm)×1@
1.91inch(48.6mm)×2
MAIN PIPE THICKNESS
1.0‚‚
1.5‚‚
SILENCER DIAMETER
5.98inch(152mm)
7.87inch(200mm)×1
1.81inch(300mm)×2 Oval
SILENCER THICKNESS
1.0‚‚
1.5
EXIT DIAMETER
4.53inch(115mm)
Outer : 3.54inch(90mm)
Inner : 2.28inch(58mm)
EXIT THICKNESS
1.0mm
1.5mm
FLANGE THICKNESS
8.0mm
9.0
WEIGHT
9.15lbs(4.15kg)
51.8bs(23.5 kg)

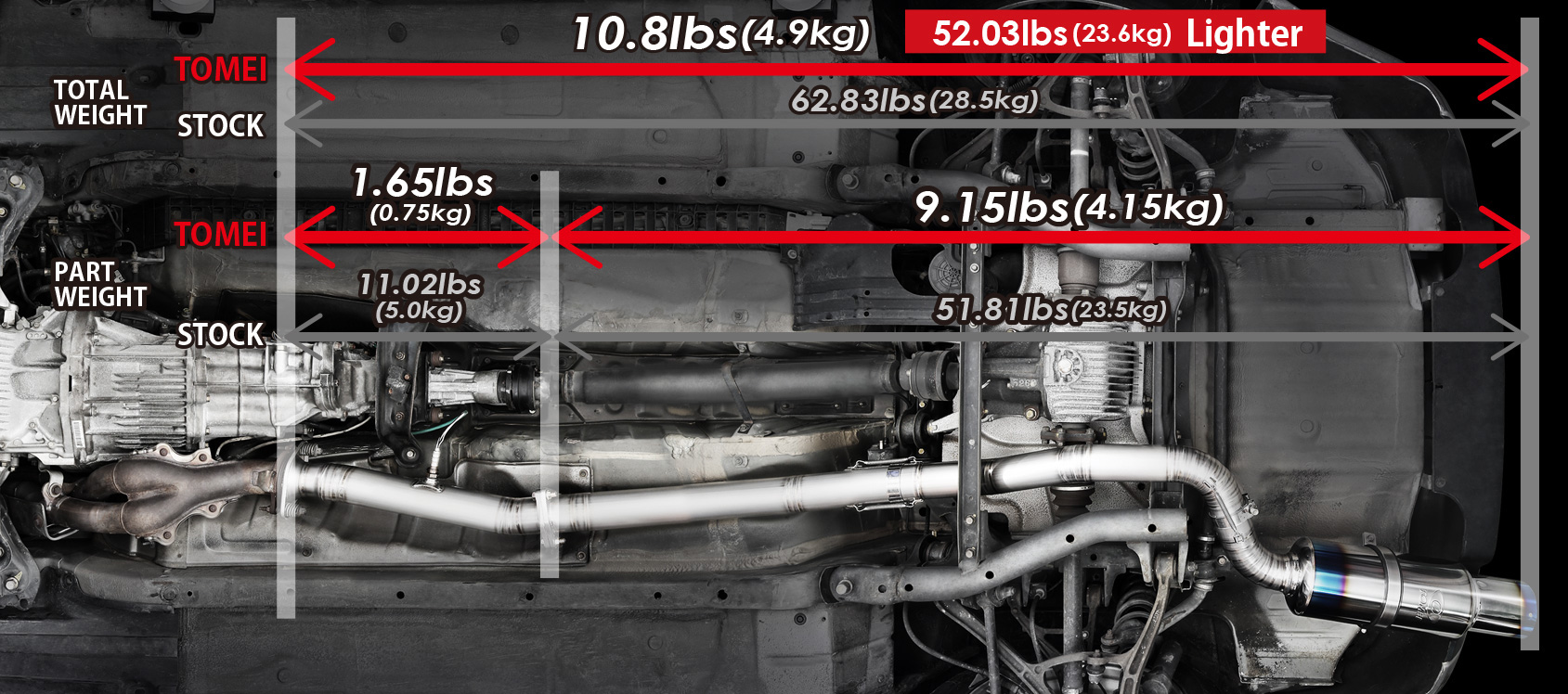

WEIGHT COMPARISON TOMEI STOCK
9.15 lbs (4.15 kg) 51.8 lbs(23.5 kg)
42.65lbs
(19.35kg)
Weight Reduction!!

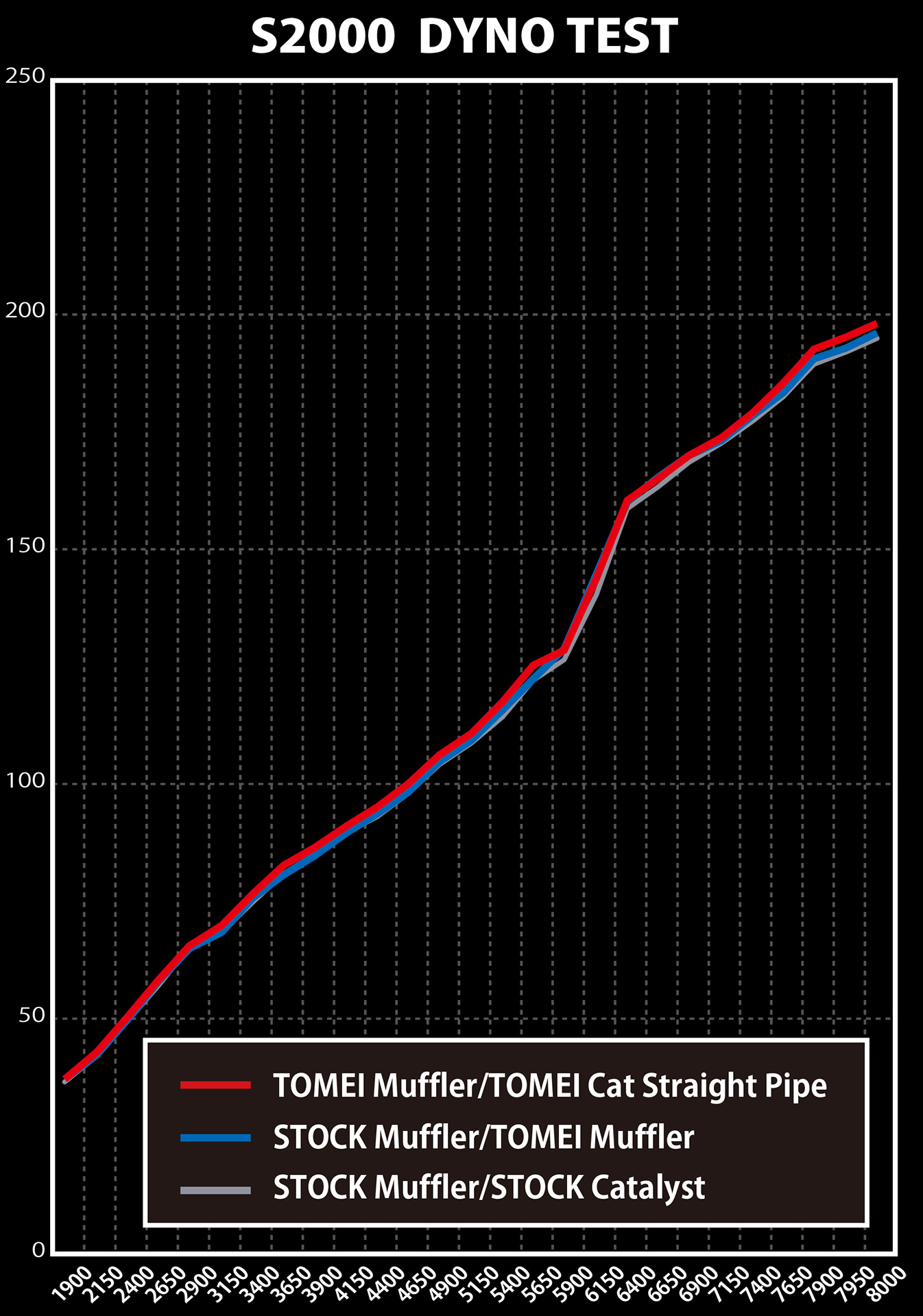

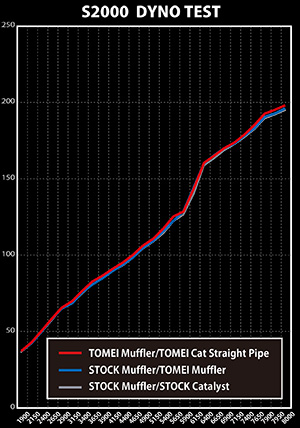

TEST DATA

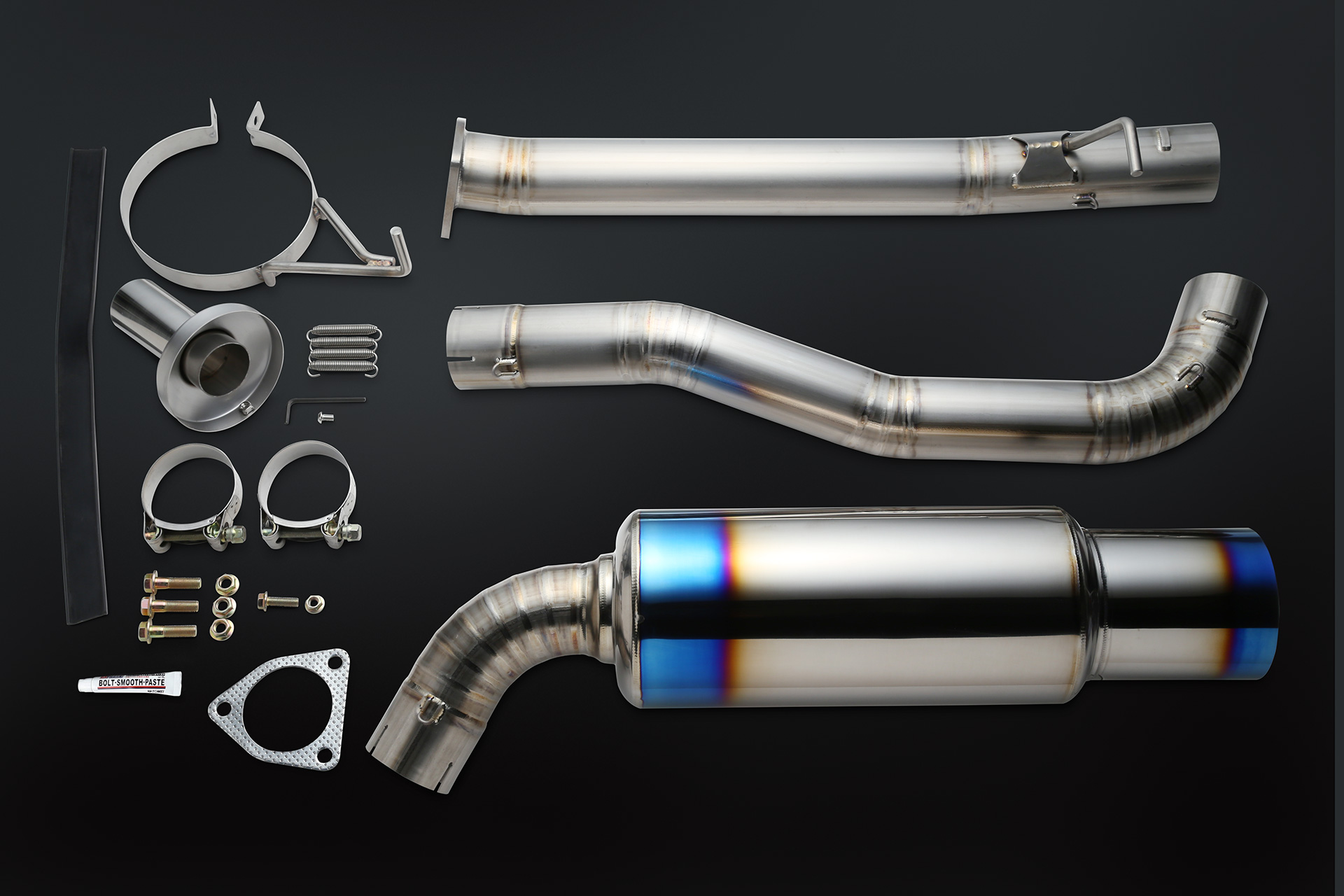

 KIT CONTENTS
MAIN PIPE A (1)
MAIN PIPE B (1)
SILENCER ASSY (1)
GASKET@Φ70 (1)
BOLT M10 L=35mm P=1.25mm (3)
NUT M10 P=1.25mm (3)
CLAMPBAND (2)
SPRING (4)
SILENCER BAND (1)
SILENCER BAND RUBBER (1)
BOLT M8 L=25mm P=1.25mm (1)
NUT M8 P=1.25mm (1)
SOUND REDUCER ver.2@(1)
BOLT SMOOTH PASTE (1)

Additional bolt holes may be required when using the sound reducer ver.2 .
Click here for details.
