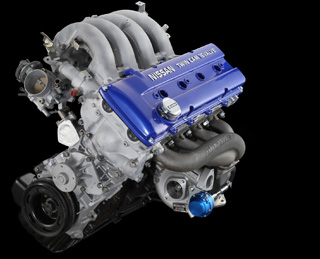

TURBO EXHAUST MANIFOLD for KA24DE / 240SX

Install SR20DET turbo and exhaust parts onto the KA24DE.
All new exhaust manifold makes turbo charging the KA24DE simple and easy.



Application : KA24DE / 240SX
MSRP $590.00 (USD)
PART NUMBER : TB601A-NS16A




SR20DET turbo flange type/size/positioning allows for SR20DET turbo and exhaust parts to be installed.   Our new turbo manifold allows for either stock or aftermarket (direct replacement bolt-on) SR20DET turbos to be installed.


Features the same technology as our SR20DET manifold with proven 'unequal length' design for outstanding turbo spool/response times.
The most equal length manifold tubing bends upwards, increasing the distance to the turbo and reducing response/spool times. Shorter, unequal length design reduces the distance to the turbo, improving spool and response.


Optimized, sequential channeling of gasses prevents back pressure at higher RPMs .

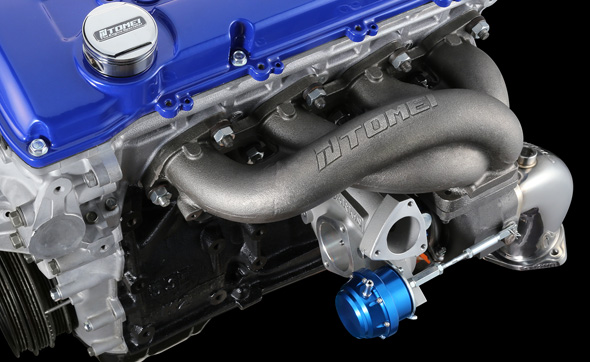

The TOMEI EXPREME KA24DE/240SX turbo exhaust manifold features a dividing plate (just before the turbo flange) separating the port into left and right chambers. With the KA24DE firing sequence being 1→3→4→2 , this dividing plate allows for the exhaust gasses from each cylinder to be channeled alternately between the left and right chambers, reducing exhaust gas interference for a smoother flow of exhaust gasses to the turbocharger.


SPECIFICATIONS
MATERIAL
LAYOUT
PIPE DIAMETER PIPE
THICKNESS
FLANGE
THICKNESS
FLANGE
TYPE
WEIGHT
(kg / lbs)
INT I.D OUT I.D F R F R
Austenitic
Ductile
cast iron
4-2-1
1.57inch
40.0mm
(Approx)
1.91inch
48.6mm
(Approx)
0.2inch
5.0mm
0.51inch
13.0mm
0.55inch
14.0mm
- T25 12.35lb
5.6kg



This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming
seized under heat.

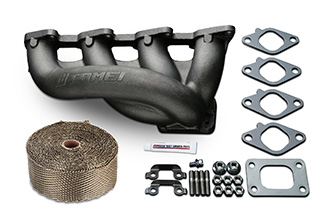

KIT CONTENTS
EXHAUST MANIFOLD (1)
GASKET (ENGINE SIDE) (4)
GASKET (TURBO SIDE) (1)
FLANGE BOLT (1)
FLANGE NUT (2)
STUD BOLT (4)
HEXAGON NUT (6)
LOCK PLATE (2)
BOLT SMOOTH PASTE (1)





Application : KA24DE / 240SX
MSRP $590.00 (USD)
PART NUMBER : TB601A-NS16A
